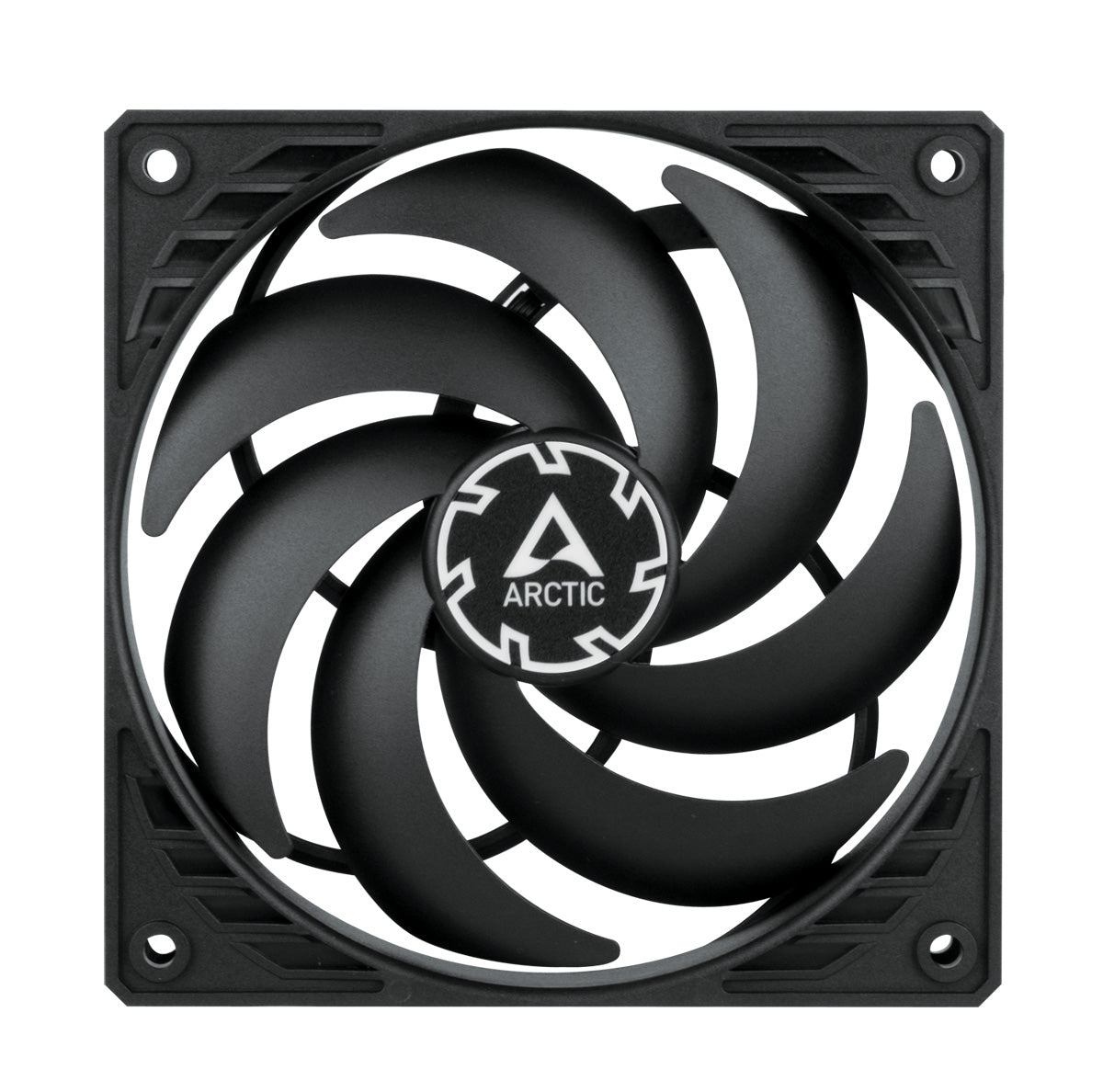

ARCTIC P12 Slim PWM PST
₱299.00
Quick Description
Fast Track Fulfillment
Zero Risk Guarantee
Uncapped Setup™
Do you have a physical store?
Do you have a physical store?
Uncapped PC is a fully online business, but we’re based in the Philippines and committed to fast, secure, and reliable service.
Do you offer warranty?
Yes, we offer warranty coverage depending on the item. Warranty terms are stated on each product listing.
If you have questions about a specific item’s warranty, feel free to reach out before ordering.
How can I track my order?
Once your item has been shipped, we’ll send you a booking link from the courier we used, along with a tracking number and contact info for follow-ups.
You’ll be able to track your order in real-time and know exactly when to expect it.
Save more with bundled shopping
Product Description
ACFAN00187A
Ideal for Small Spaces

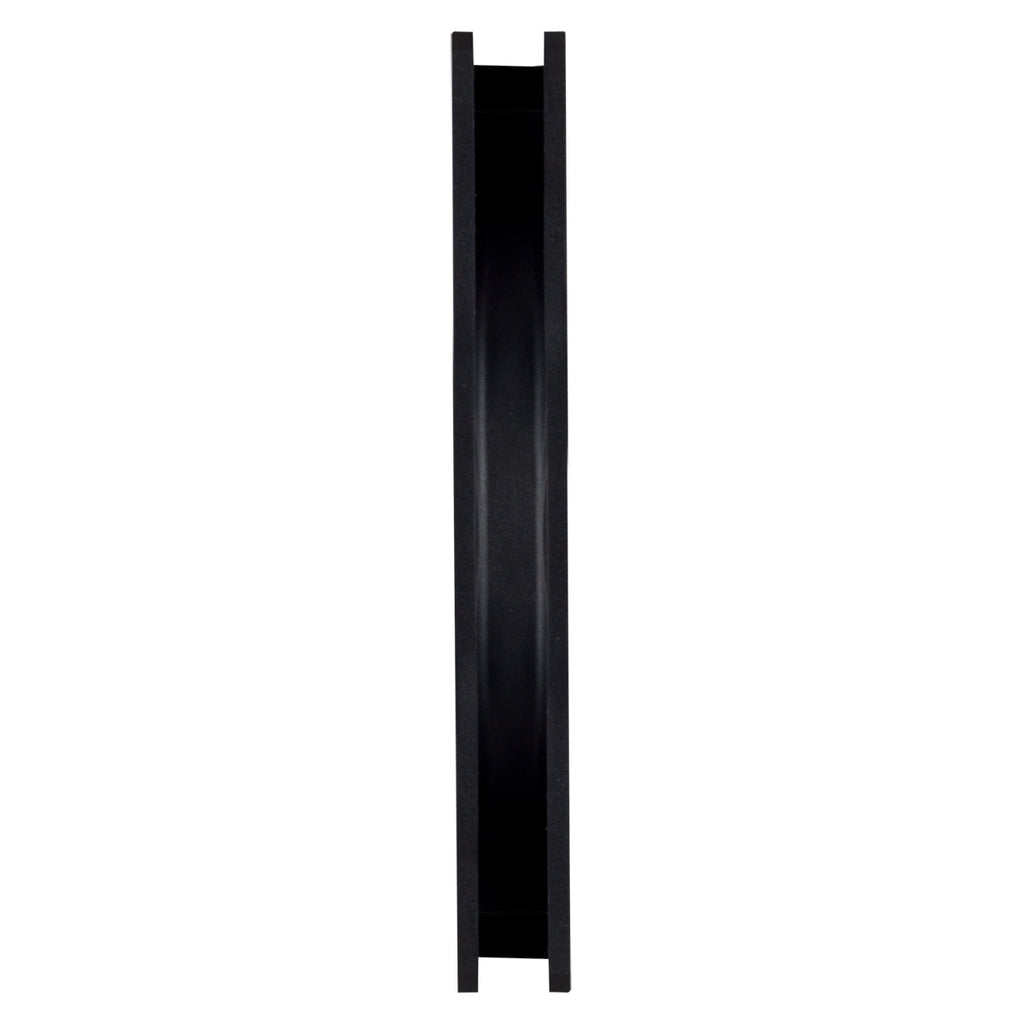

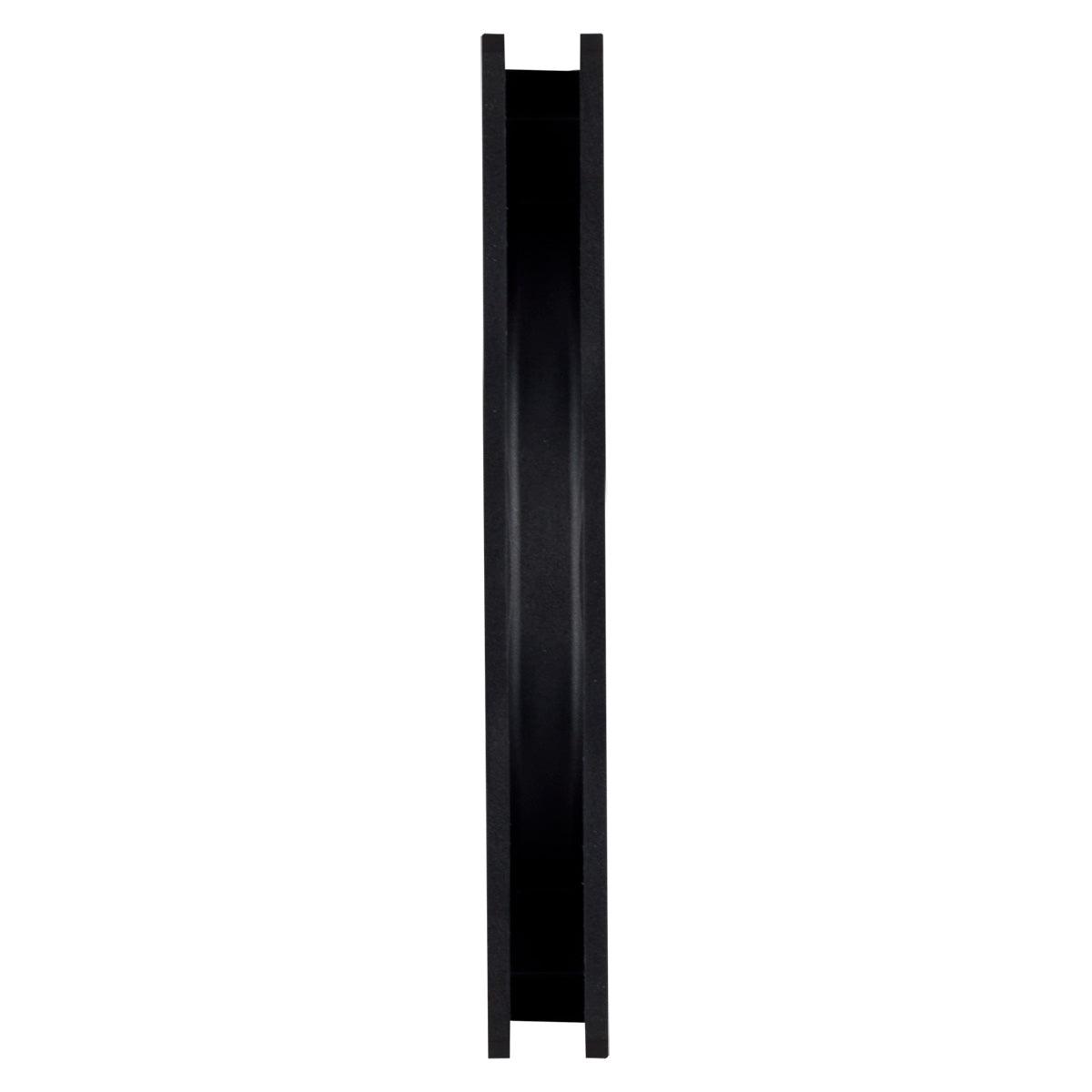

Unlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.
Optimised for High Static Pressure
Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
Maximum Quietness, Minimum Vibration
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
Improved Service Life
The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.
200 to 2100 rpm Controlled via PWM PST
With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.
High-Quality Sleeve Bearing
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.
0dB Mode — Zero rpm
The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.
Versatile Use
The P12 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.
Technical Specifications
- Warranty: 6 Years
- Operating Ambient Temperature: 0–40 °C

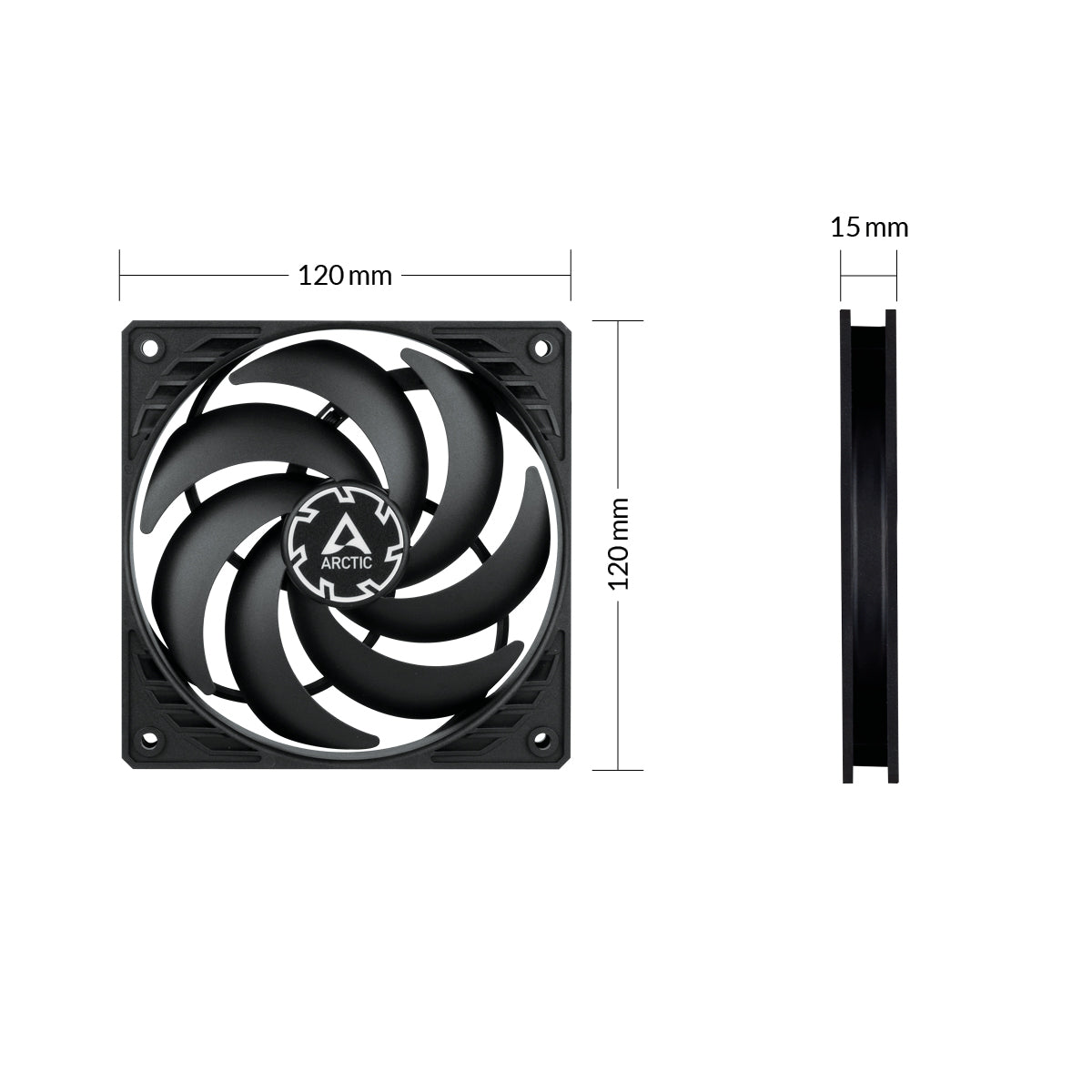

- Dimensions: 120 (L) x 120 (W) x 15 (H) mm
- Net Weight: 85 g
- Fan Speed: 200–2100 rpm (PWM controlled),
- Airflow: 34.51 cfm | 58.62 m³/h
- Static Pressure: 1.33 mmH 2 O
- Fan Bearing: Fluid Dynamic Bearing
- Typical Voltage: 12 V DC
- Start Up Voltage: 5 V DC
- Current: 0.12 A
- Cable Length: 400 mm
- Connector: 4-Pin Connector + 4-Pin Socket
