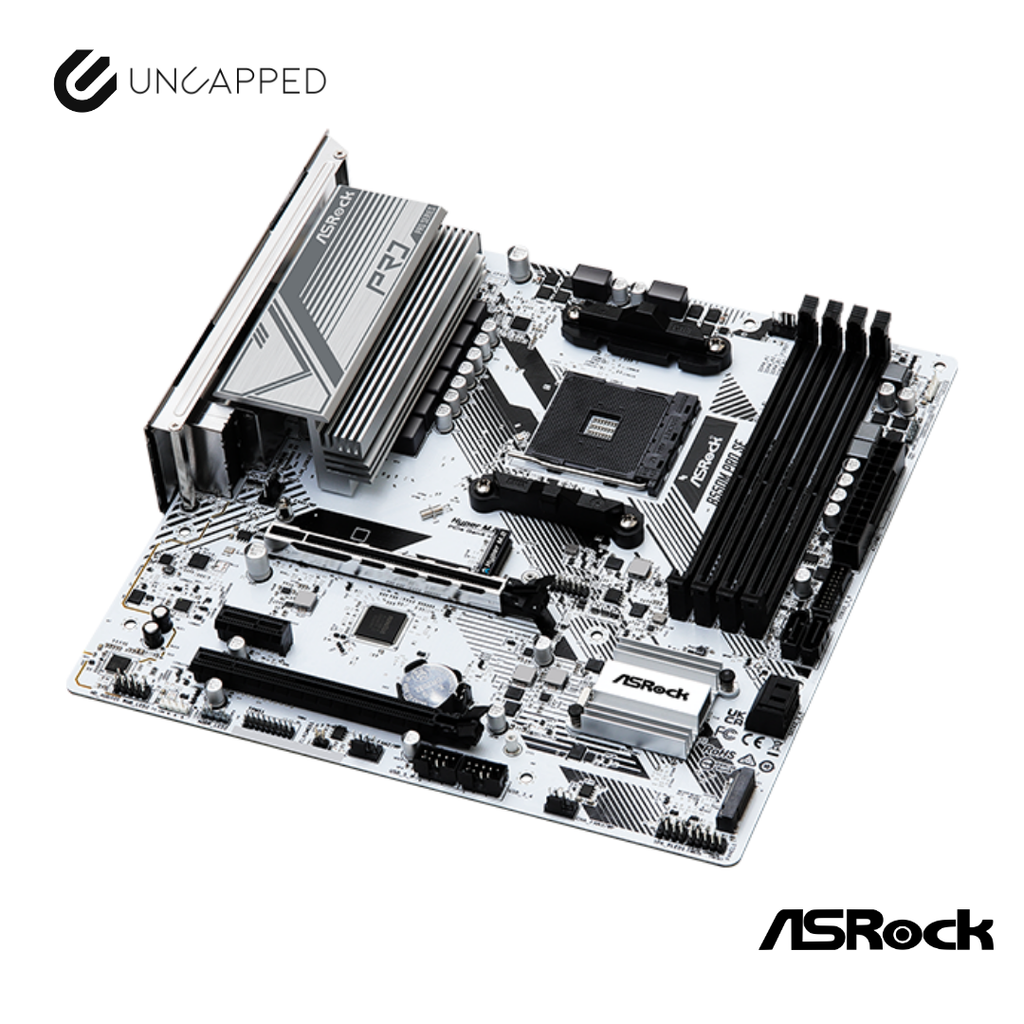

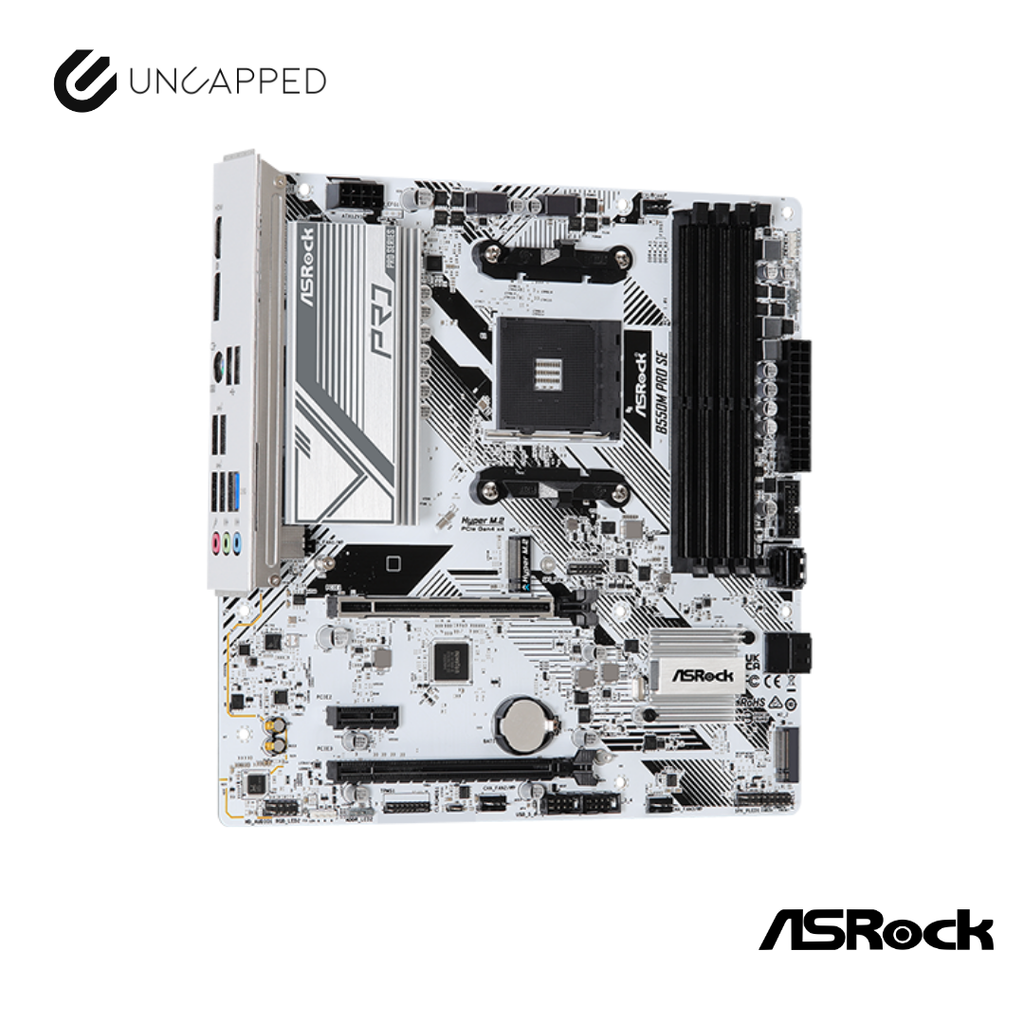

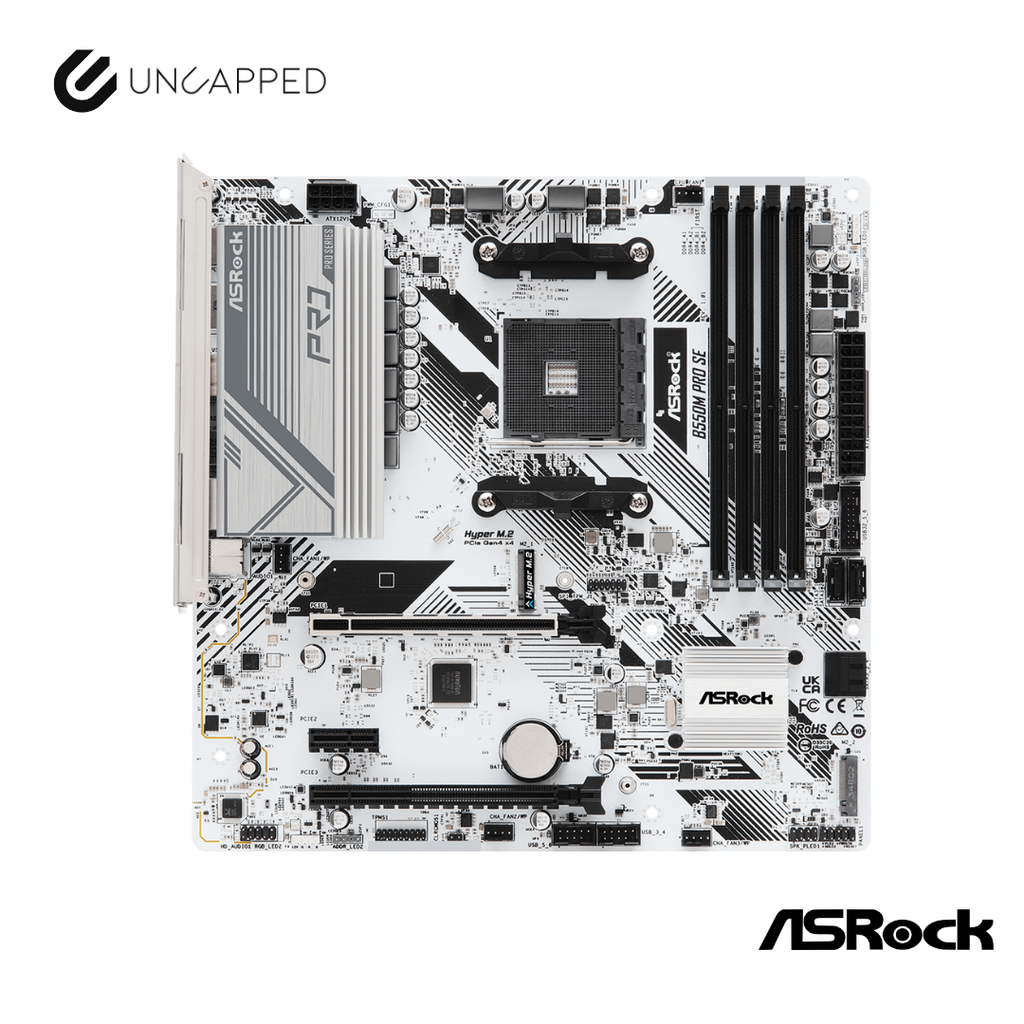

The ASRock B550M Pro SE is a Micro ATX motherboard designed for users seeking a balance between performance and affordability. It supports AMD AM4 Socket Ryzen™ processors, making it suitable for both gaming and productivity setups.
Socket: AM4
RAM: 4
PCI-E: 2
M.2 Slots: 2
Ryzen 5000 desktop ready
Category | Details |
---|---|
Form Factor | Micro ATX |
CPU Socket | AM4 |
Chipset | AMD B550 |
Supported Processors | AMD Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors* |
Memory Slots | 4 x DDR4 DIMM slots |
Memory Speed | Up to 4733+ MHz (OC) |
Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
Storage | 4 x SATA3 ports, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3) |

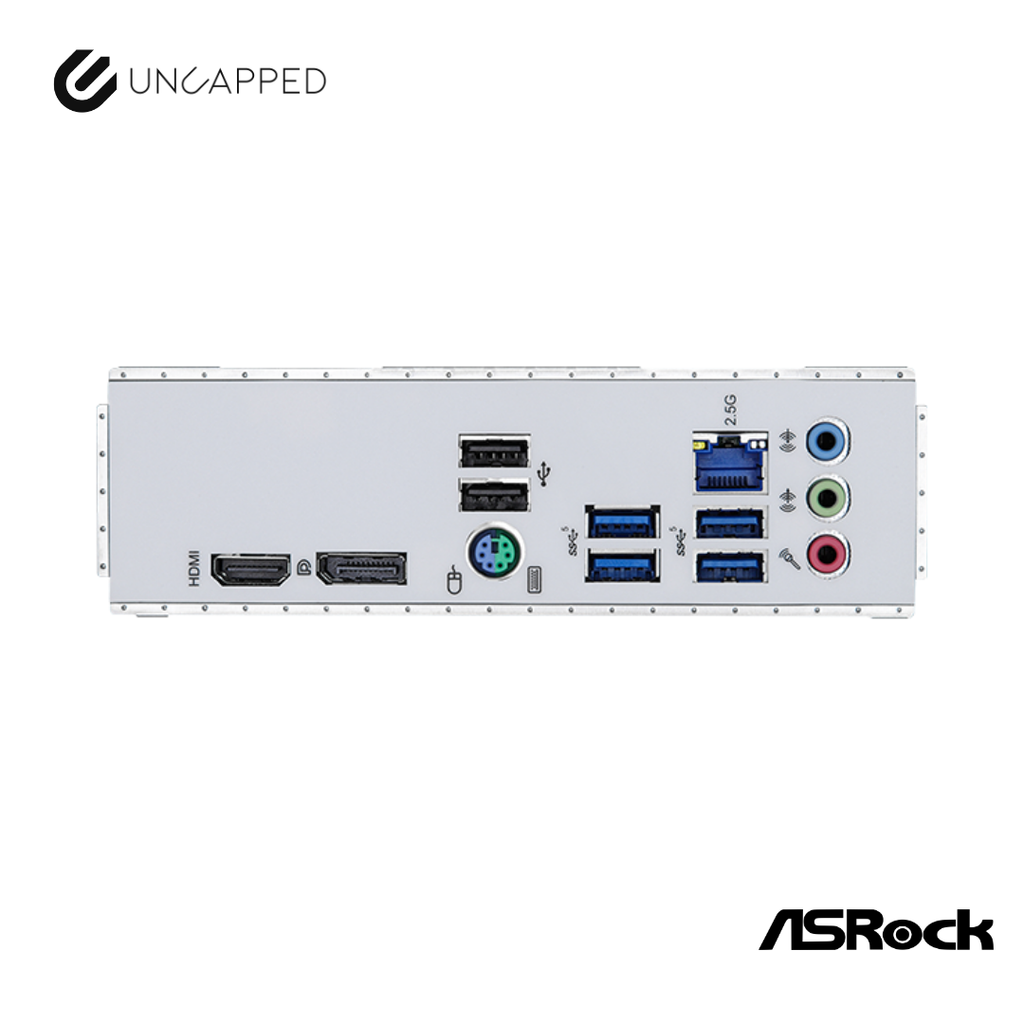

Graphics Output | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
LAN | 2.5 Gigabit LAN |
USB Ports | 6 x USB 3.2 Gen1 (4 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) |
Power Phase | 8 Power Phase Design |
Special Features | Pre-Installed I/O Shield |
