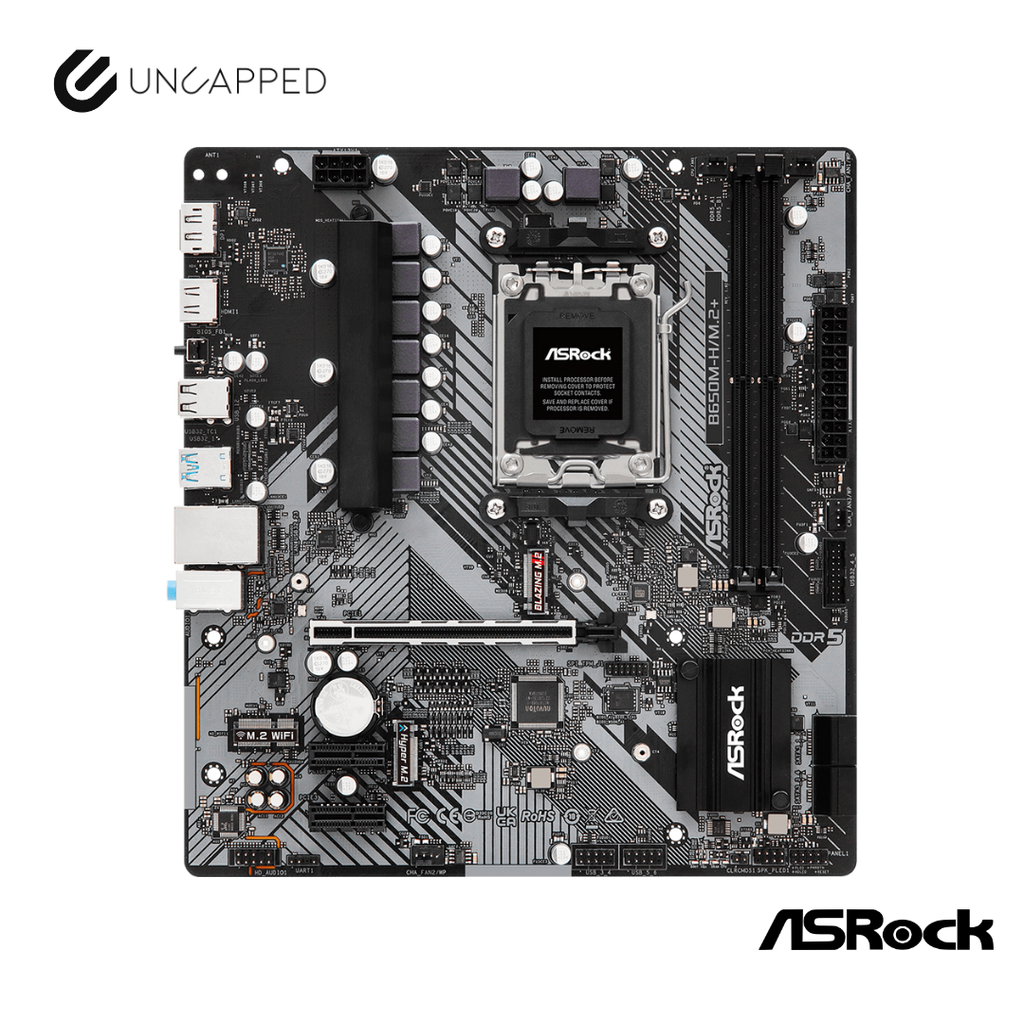

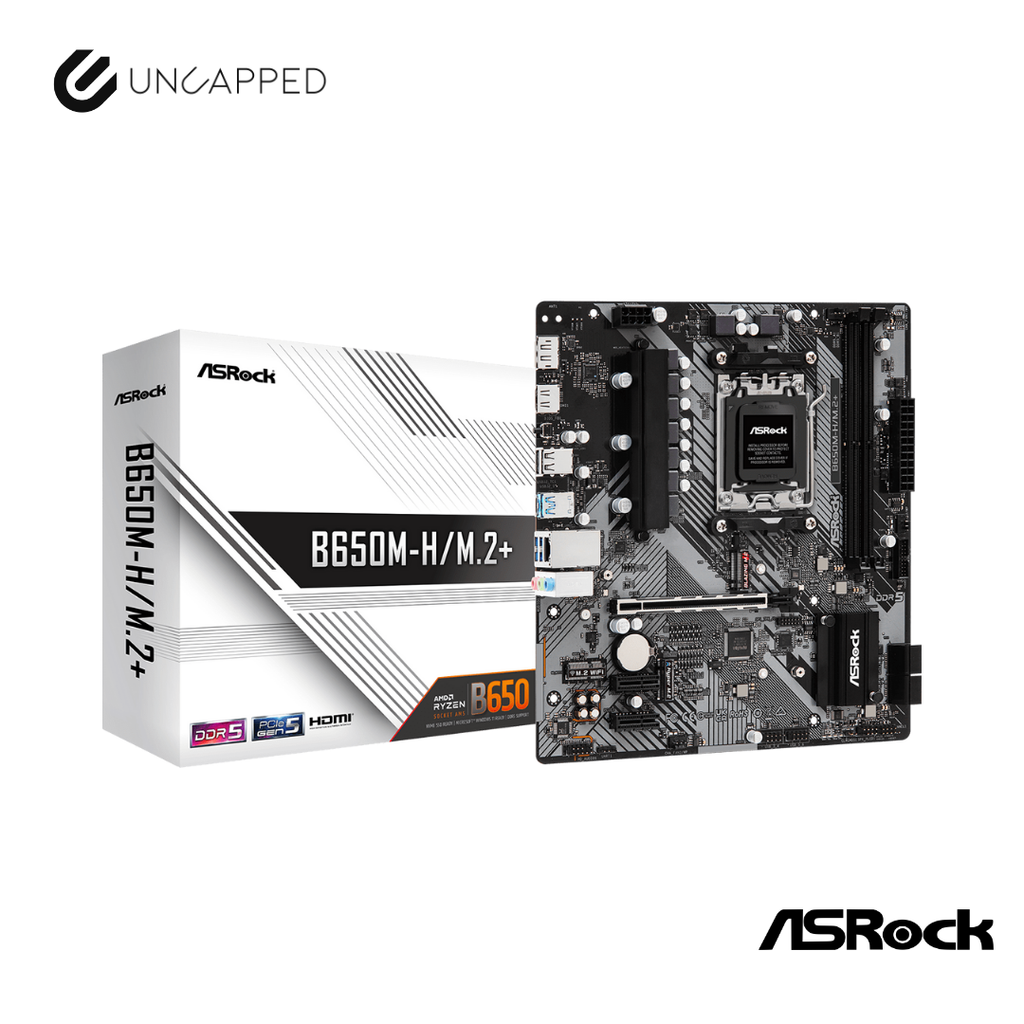

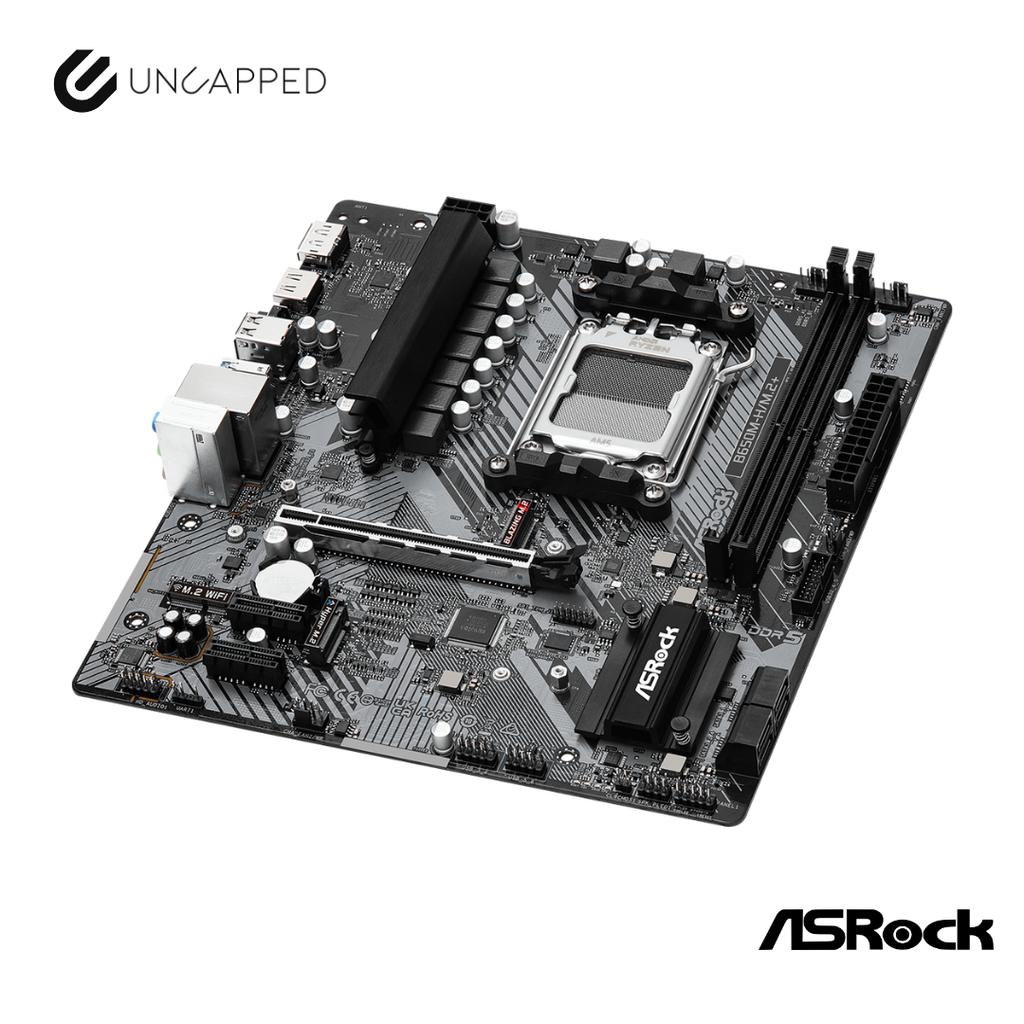

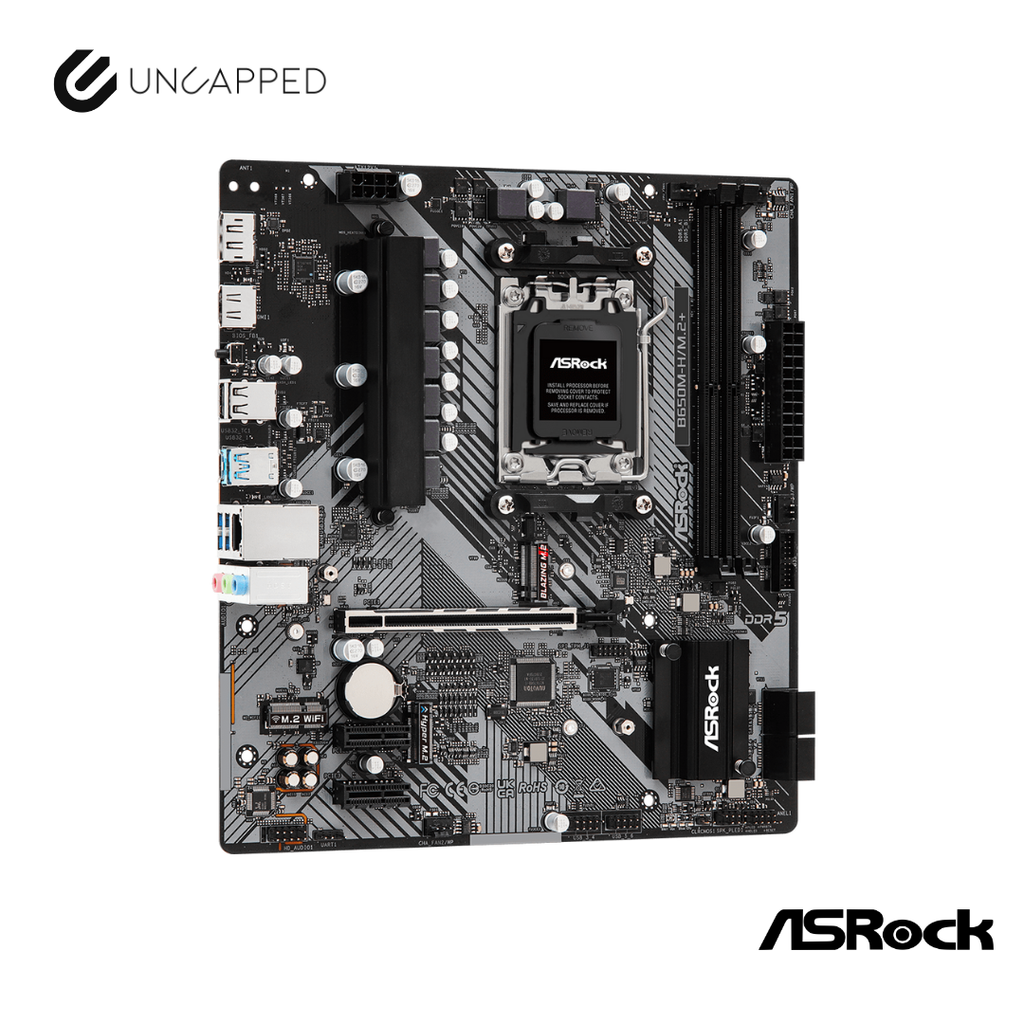

The ASRock B650M-H/M.2+ is a Micro ATX motherboard designed for users seeking a balance between performance and affordability. It supports AMD's latest AM5 Ryzen™ 7000, 8000, and 9000 Series processors, making it suitable for both gaming and productivity setups.
Brand: ASRock
Socket: AM5
RAM: 2
PCI-E: 1
M.2 Slots: 2
Ryzen 9000 desktop ready
Category | Details |
---|---|
Form Factor | Micro ATX |
CPU Socket | AM5 |
Chipset | AMD B650 |
Supported Processors | AMD Ryzen™ 7000, 8000, and 9000 Series Processors |
Memory Slots | 2 x DDR5 DIMM slots |
Memory Speed | Up to 6400+ MHz (OC) |
Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1, 1 x M.2 Key E for WiFi |
Storage | 4 x SATA3 ports, 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4) |

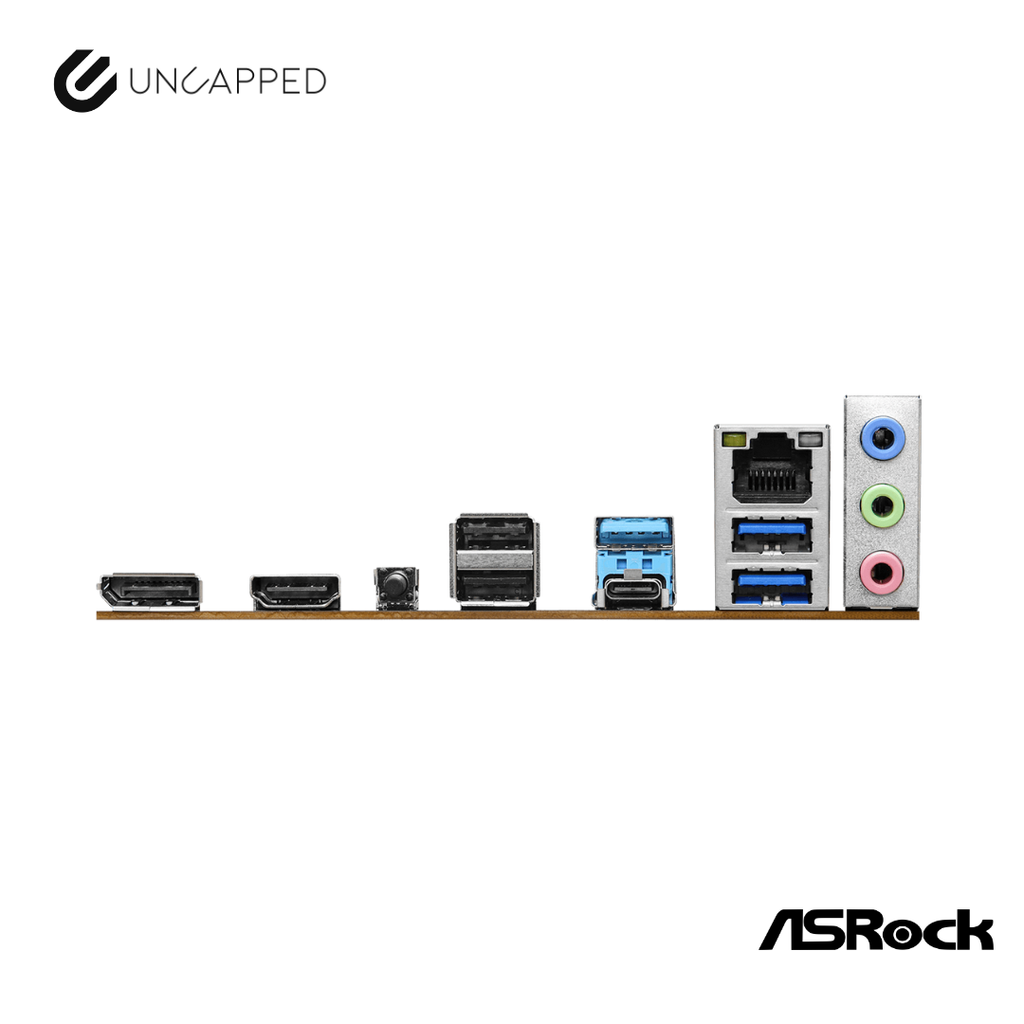

Graphics Output | 1 x HDMI, 1 x DisplayPort |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio |
LAN | Realtek Gigabit LAN |
USB Ports | 6 x USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) |
Power Phase | 6+1+1 Power Phase Design, Dr.MOS |
Special Features | BIOS Flashback Button, ASRock Auto Driver Installer, Post Status Checker |
