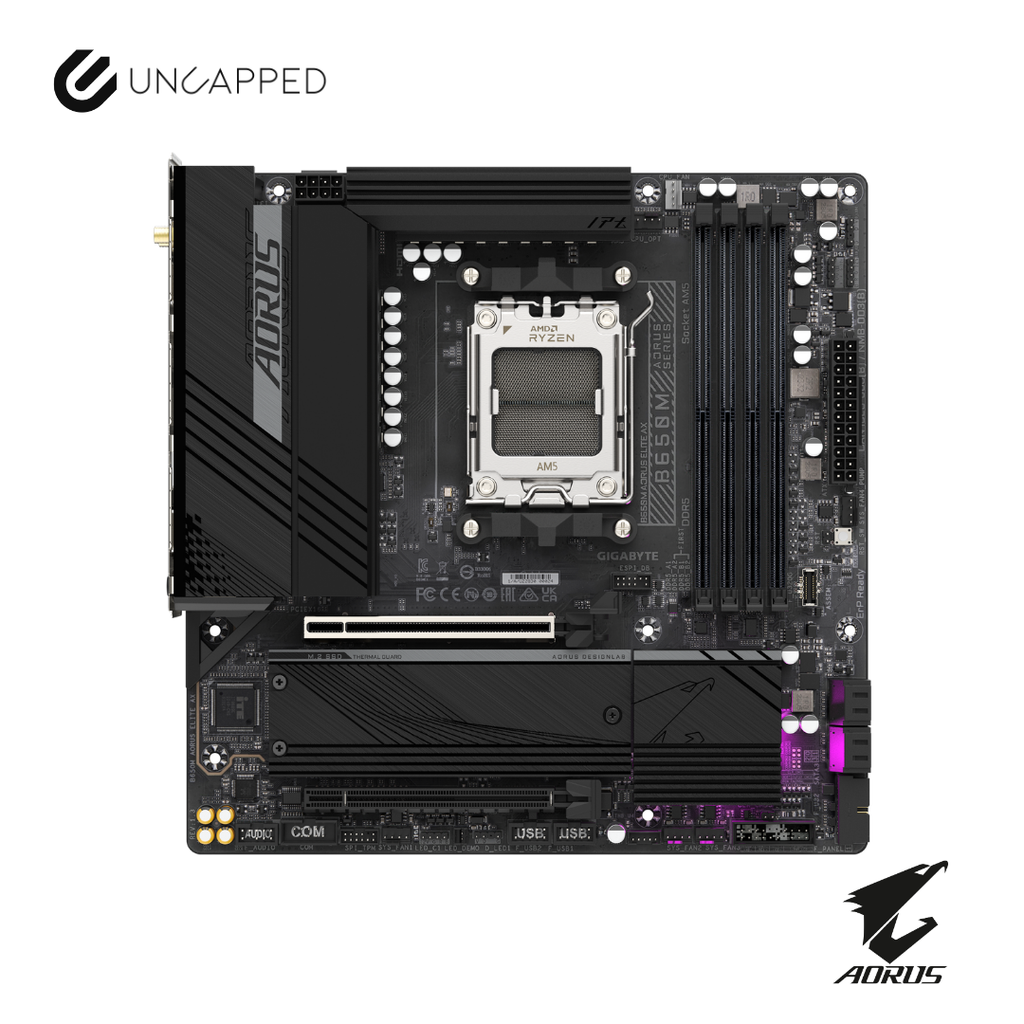

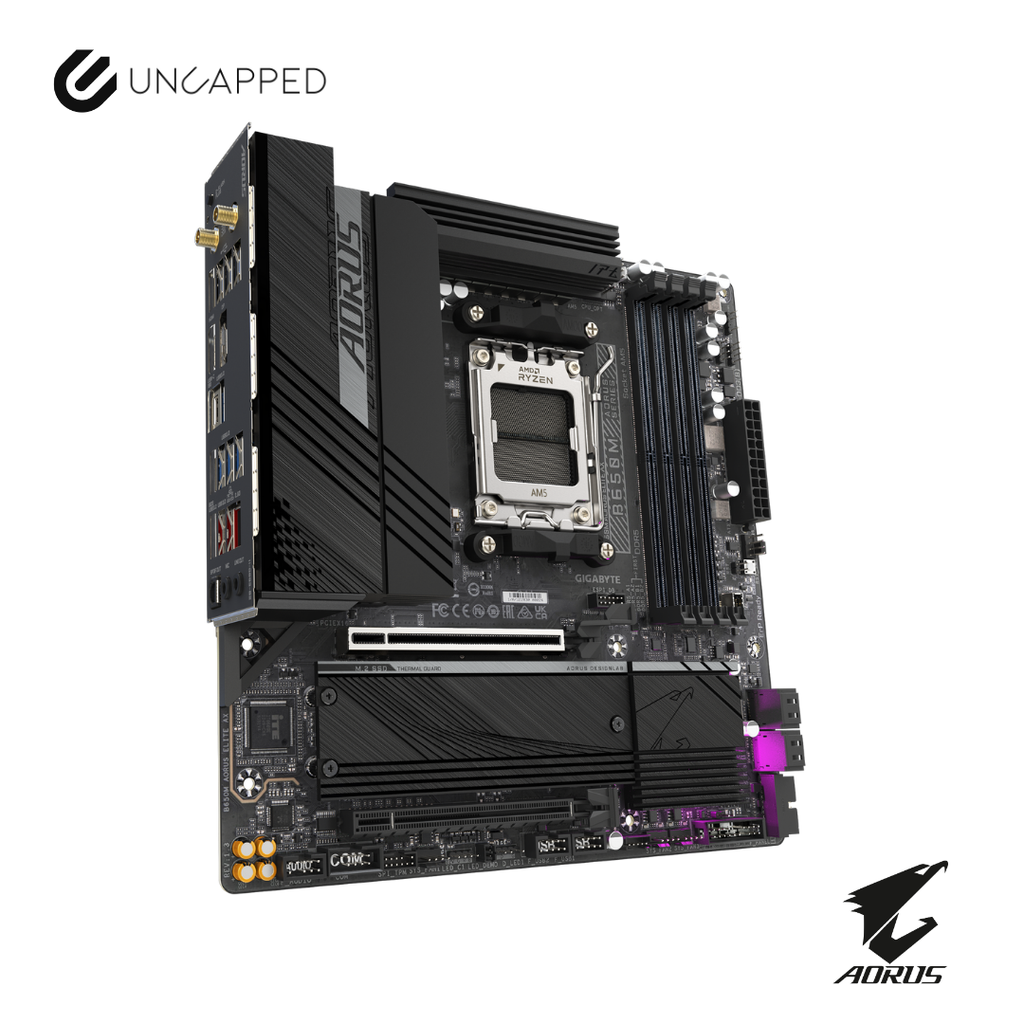

Key Features
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E

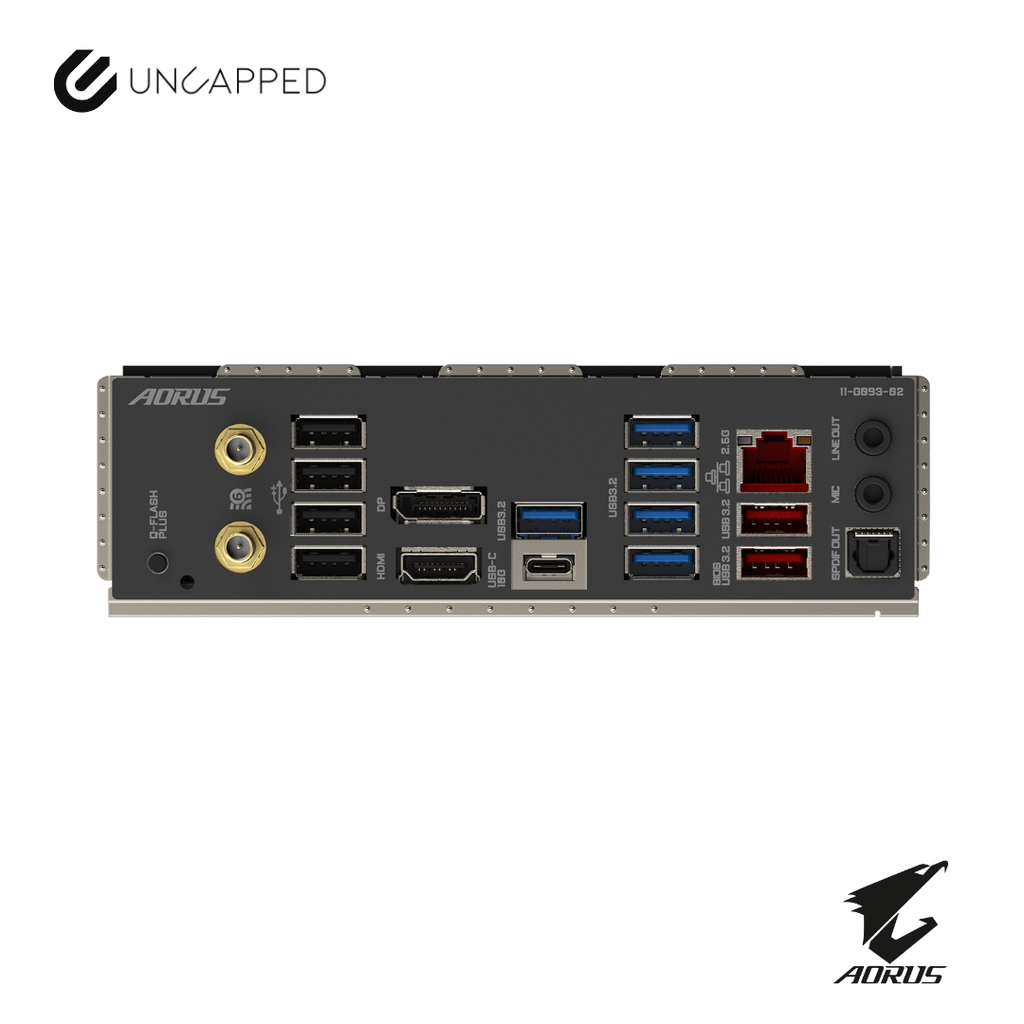

- Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Category | Details |
|---|---|
| Form Factor | Micro ATX |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| Supported Processors | AMD Ryzen™ 7000 / 8000 / 9000 Series |
| Memory Slots | 4 x DDR5 DIMM slots |
| Memory Speed | Up to 6600 MHz (OC) |
| Maximum Memory Capacity | 128GB |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4 |
| Storage | 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s ports |
| Graphics Output | 1 x HDMI, 1 x DisplayPort |
| Audio | 8-Channel HD Audio with High-End Audio Capacitors |
| LAN | 2.5 Gigabit LAN |
| Wireless | Wi-Fi 6E |
| USB Ports | Rear: 1 x USB-C 3.2 Gen 2, 2 x USB-A 3.2 Gen 2, 5 x USB-A 3.2 Gen 1, 4 x USB-A 2.0 |
| Power Phase | Twin 12+2+2 Phases Digital VRM Solution |
| Special Features | PCIe 5.0 Support, M.2 Thermal Guard, EZ-Latch for PCIe and M.2 slots |
