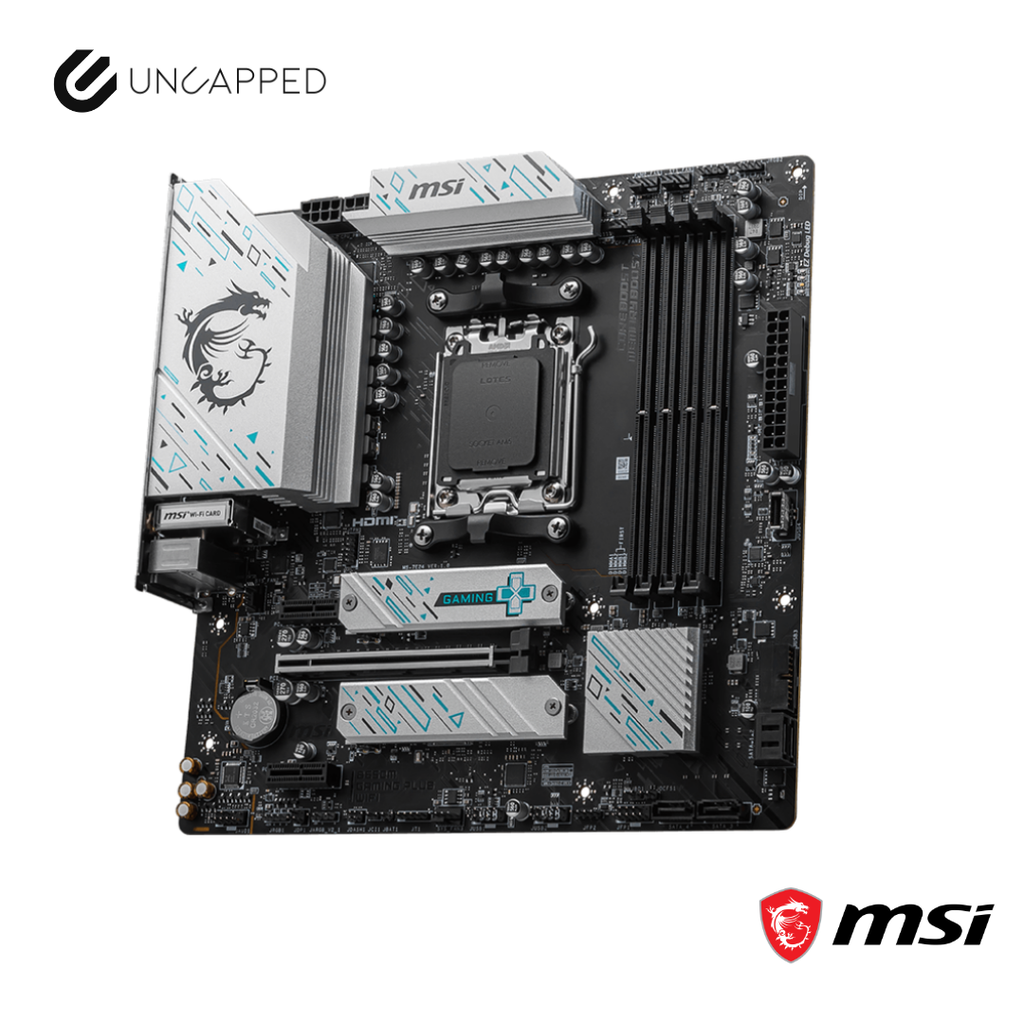

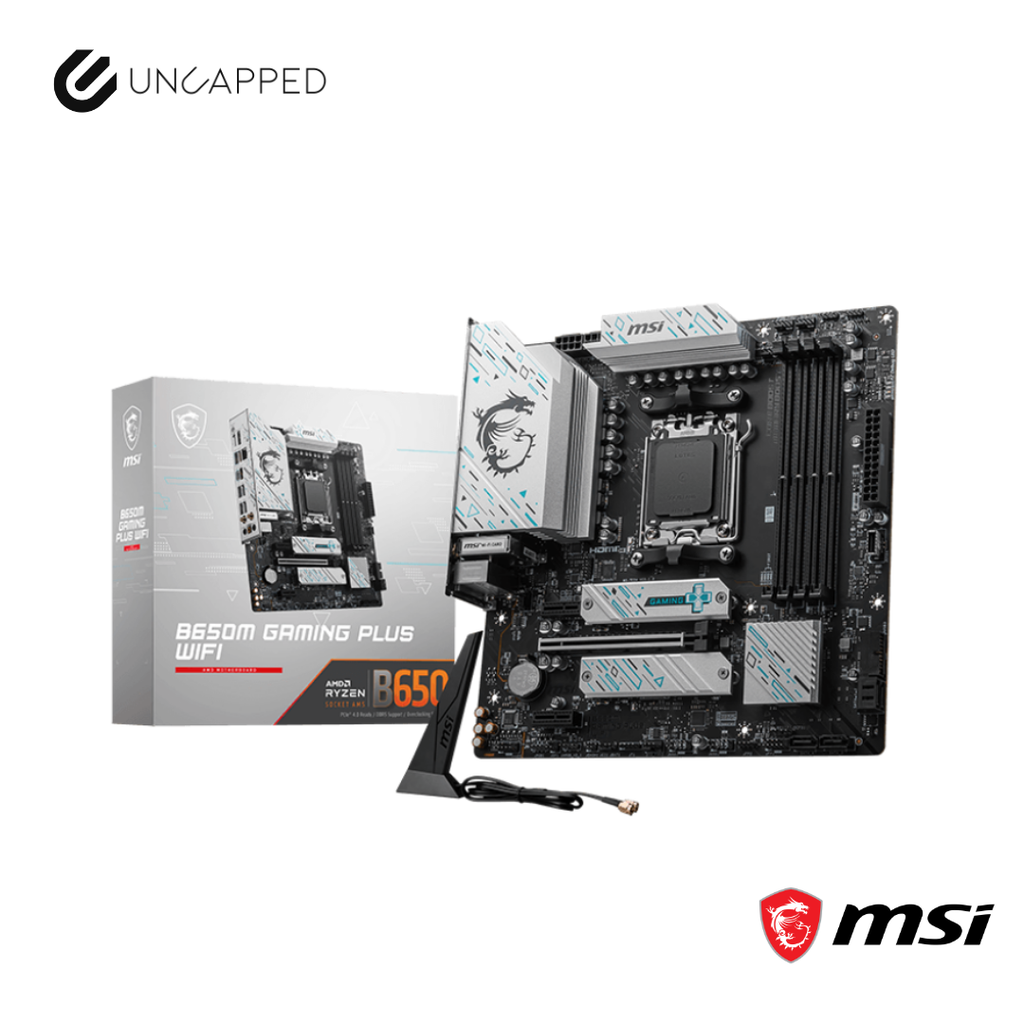

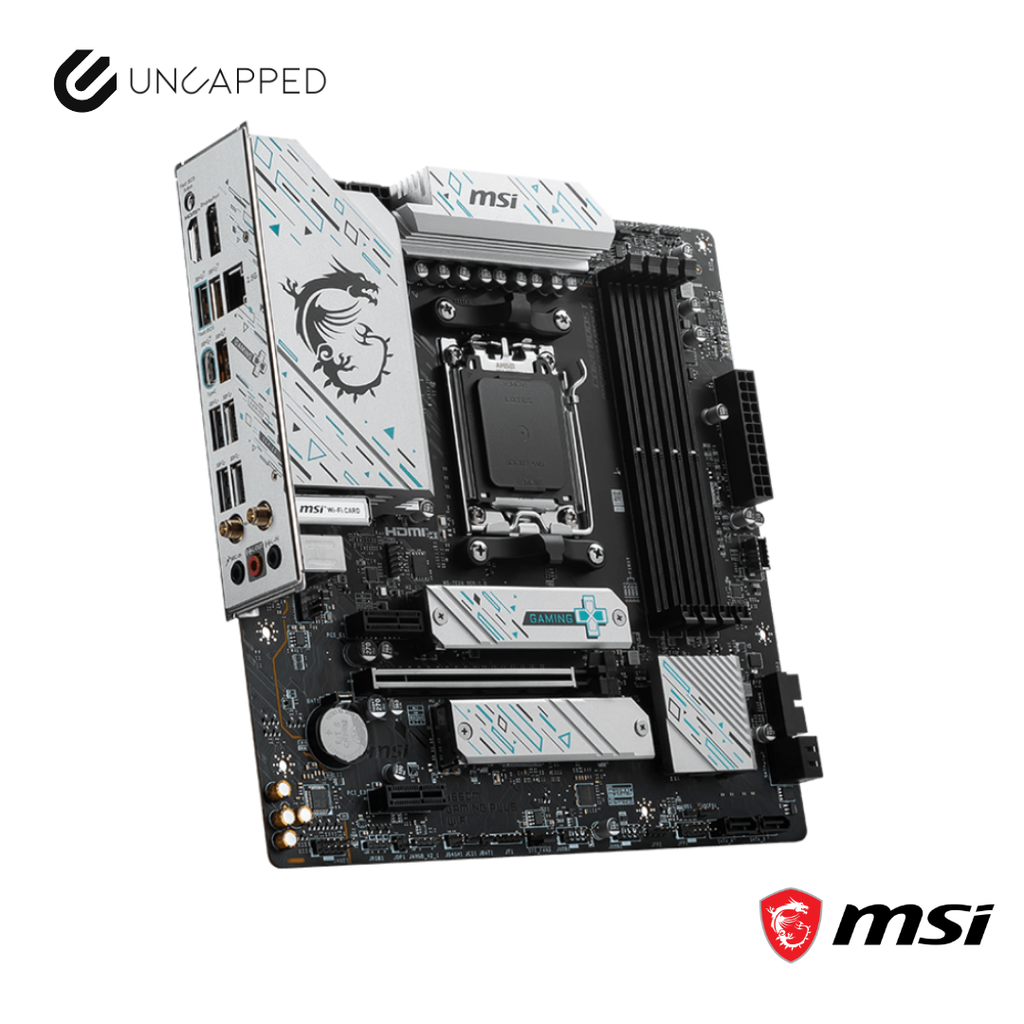

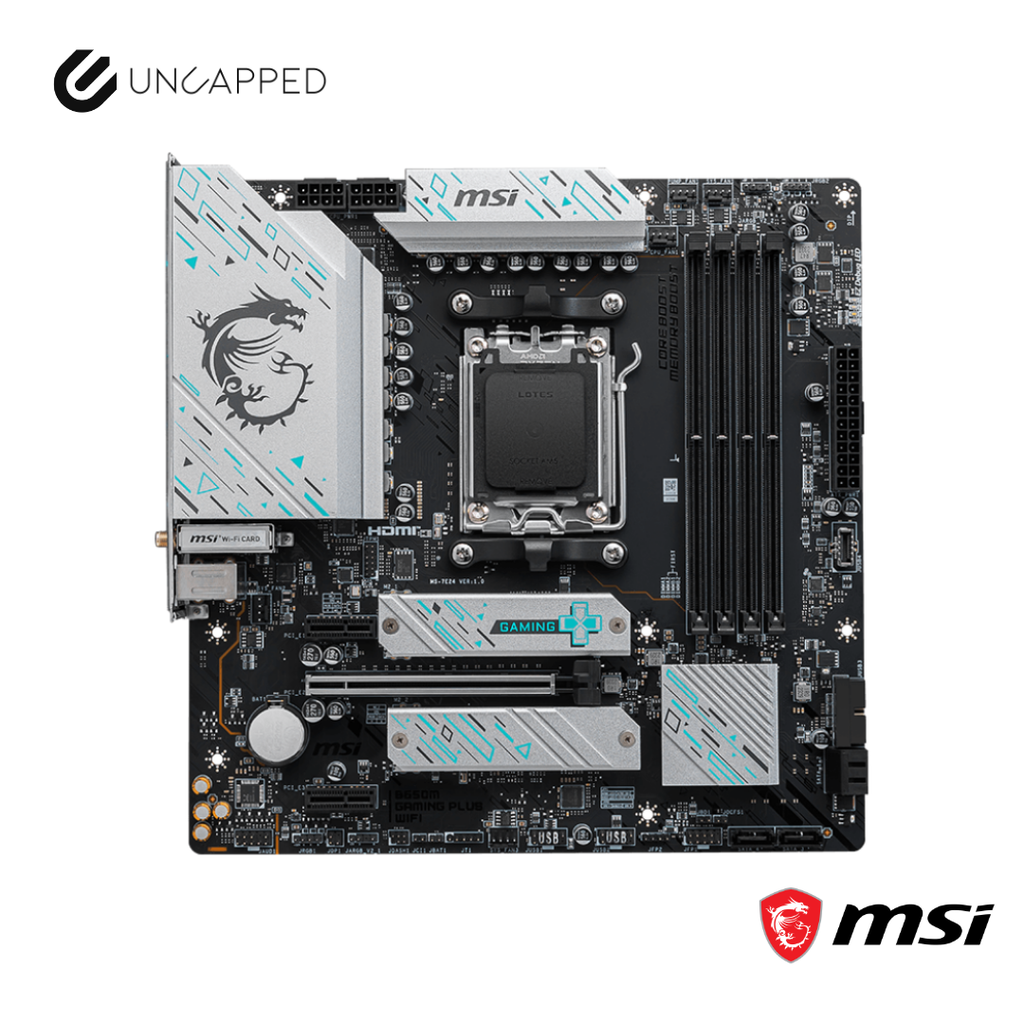

The MSI B650M GAMING PLUS WIFI is a Micro ATX motherboard tailored for gamers and PC enthusiasts seeking a balance of performance and connectivity. Designed to support AMD Ryzen™ 7000, 8000, and 9000 Series Desktop Processors, it offers advanced features like DDR5 memory support and Wi-Fi 6E, ensuring a seamless gaming experience.
Brand: MSI
Socket: AM5
RAM: 4
PCI-E: 1
M.2 Slots: 2
WIFI: Included
Ryzen 9000 desktop ready
| Category | Details |
|---|---|
| Form Factor | Micro ATX |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| Supported Processors | AMD Ryzen™ 7000, 8000, and 9000 Series Desktop Processors |
| Memory Slots | 4 x DDR5 DIMM slots |
| Memory Speed | Up to 7200+ MHz (OC) |
| Maximum Memory Capacity | 256GB |
| Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| Storage | 2 x M.2 slots (PCIe Gen4 x4), 4 x SATA 6Gb/s ports |
| Graphics Output | 1 x HDMI 2.1 (4K @ 60Hz), 1 x DisplayPort 1.4 (4K @ 60Hz) |
| Audio | 7.1-Channel High Definition Audio (Realtek ALC897 Codec) |
| LAN | 2.5 Gigabit LAN |
| Wireless | Wi-Fi 6E, Bluetooth 5.3 |
| USB Ports (Rear) | 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 |
| USB Ports (Front) | Supports additional USB ports via internal headers |
| Power Phase | 10+2+1 Duet Rail Power System |
| Special Features | DDR5 Memory Support, PCIe 4.0, Wi-Fi 6E, 2.5G LAN, Enhanced Power Design, Premium Thermal Solution |
