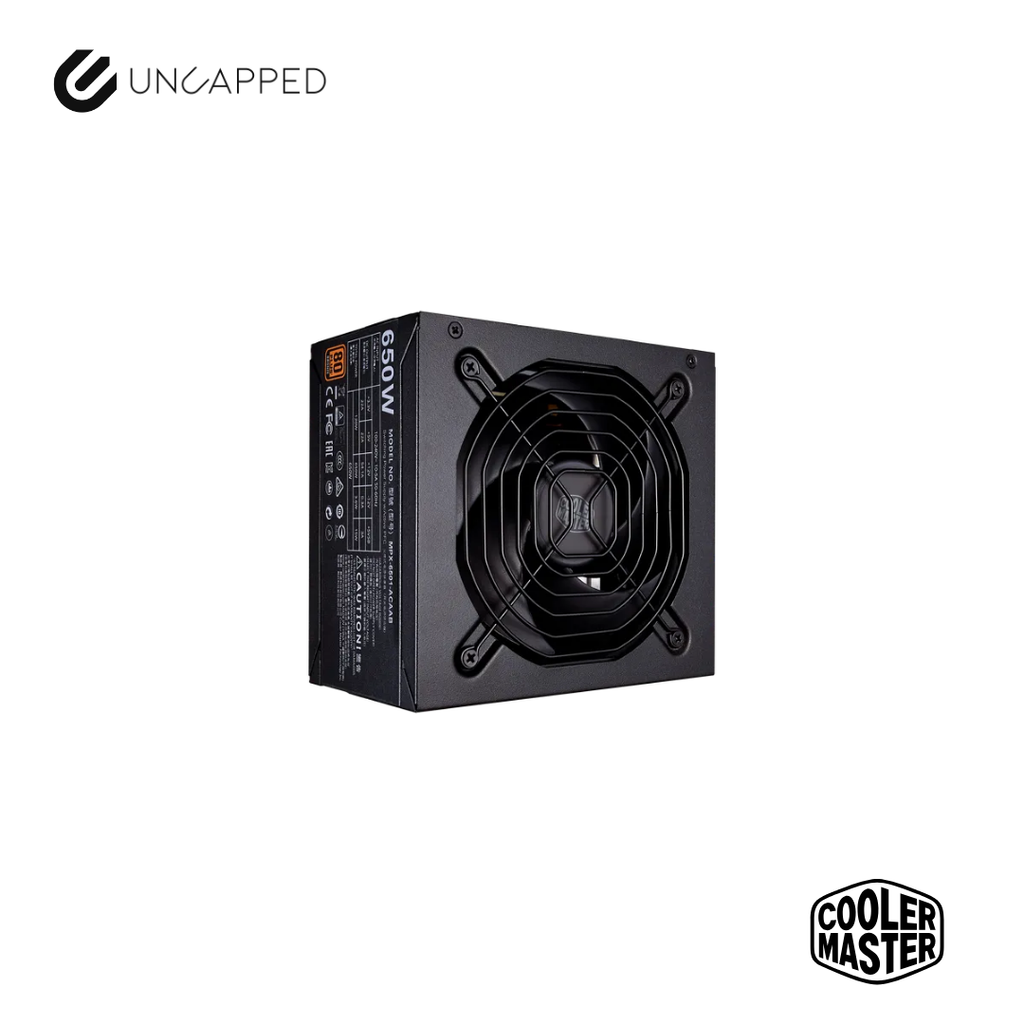

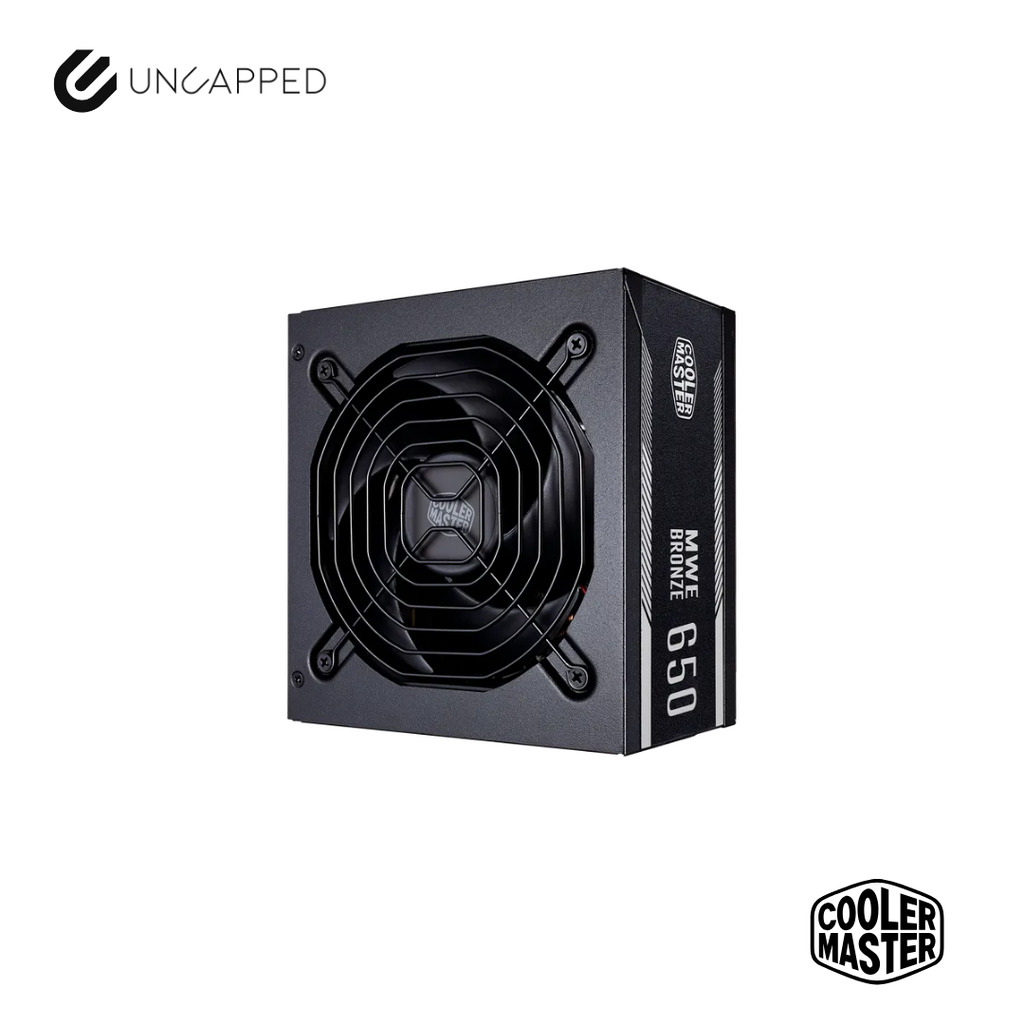

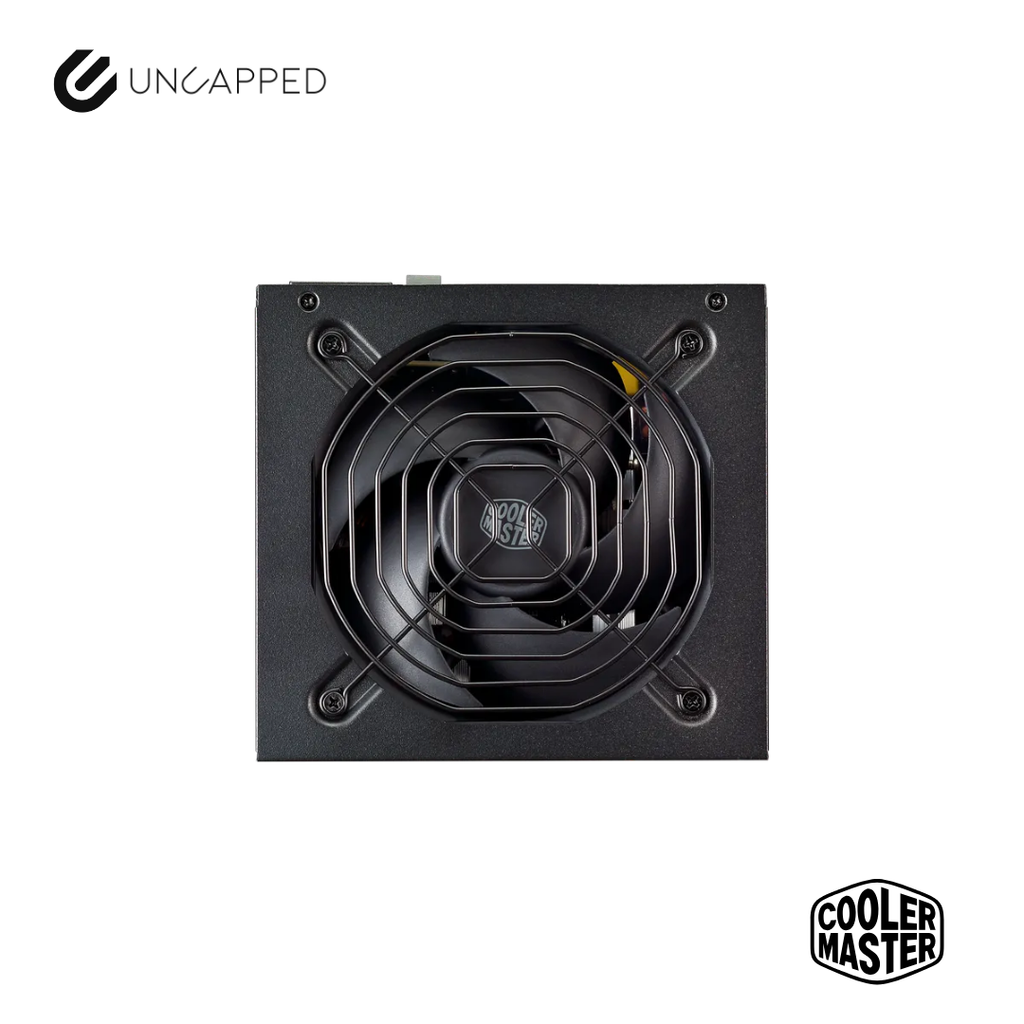

Delivering stable and efficient power, this PSU is perfect for mid-range to high-end builds. Its 80+ Bronze certification ensures reliability and energy efficiency at an affordable price.
• 80 PLUS Bronze
• DC-DC circuit design
• Quality capacitors
• Durable LDB bearing
• Low standby power consumption
• Sleeved cables
| Category | Details |
|---|---|
| PFC | Active PFC |
| Input Frequency | 50-60Hz |
| Operating Temperature | 0-40°C |
| Operation Voltage | 100-240Vac |
| ErP 2013 Lot 6 | Yes |
| MB 20+4 Pin Connectors | 1 |
| FDD Cable 4 Pin Connectors | 1 |
| Power Good Signal | 100 - 500 ms |
| MTBF | >100,000 Hours |
| Fan Size | 120mm |
| Fan Bearing | LDB |
| Category | 500 to 750W |
| CPU 12V 4+4 Pin Connectors | 1 |
| Modular | Non Modular |
| ATX Version | ATX 12V V2.31 |
| 80 Plus Efficiency | Bronze |
| Efficiency | 85% @ Typical Load |
| SATA Connectors | 8 |
| PCI-e 6+2 Pin Connectors | 4 |
| Peripheral 4 Pin Connectors | 4 |
| Input Voltage | 100-240Vac |
| Series | MWE Bronze Series |
| Protections | OVP, OPP, SCP, UVP, OTP, OCP |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Model | MPX-6501-ACAAB |
| Hold Up Time | 16ms at 80% Load |
| Product Name | MWE Bronze 650 |
| Input Current | 10-5A |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC |
