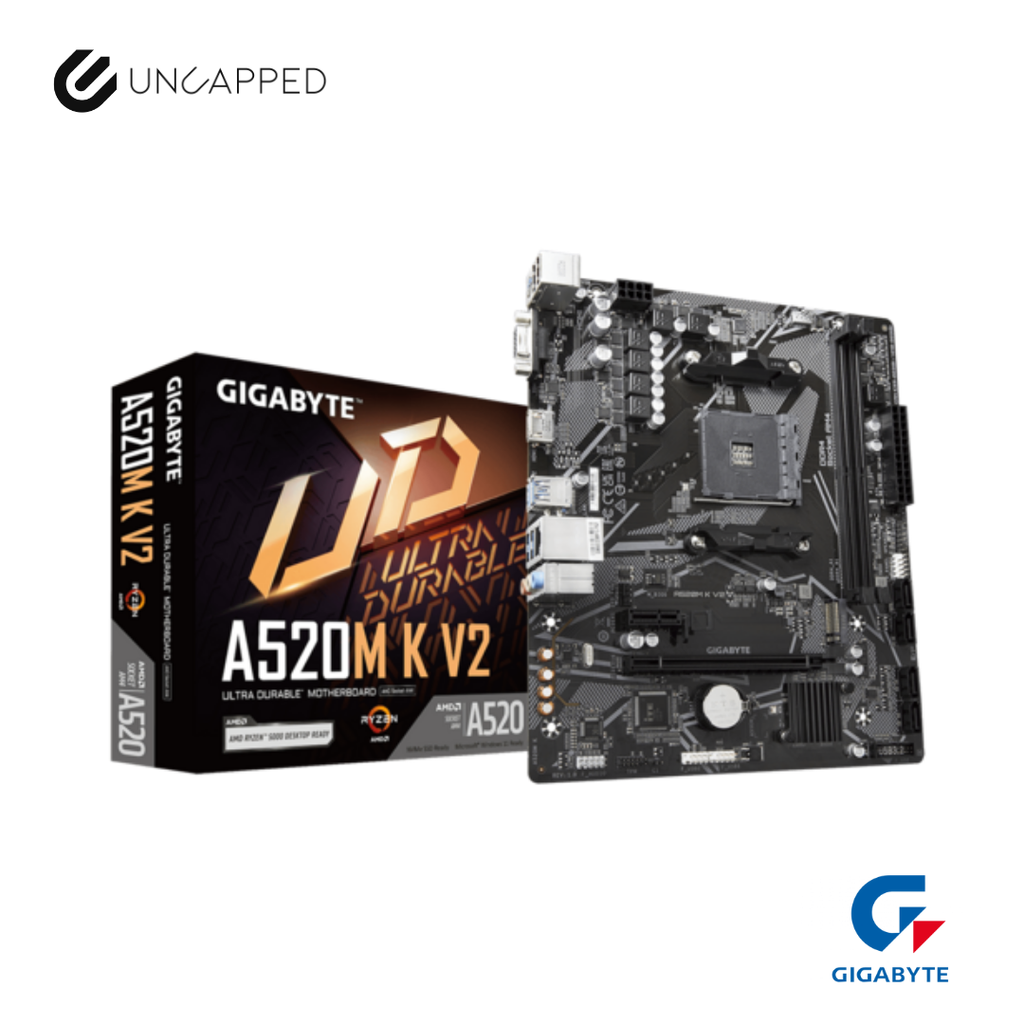

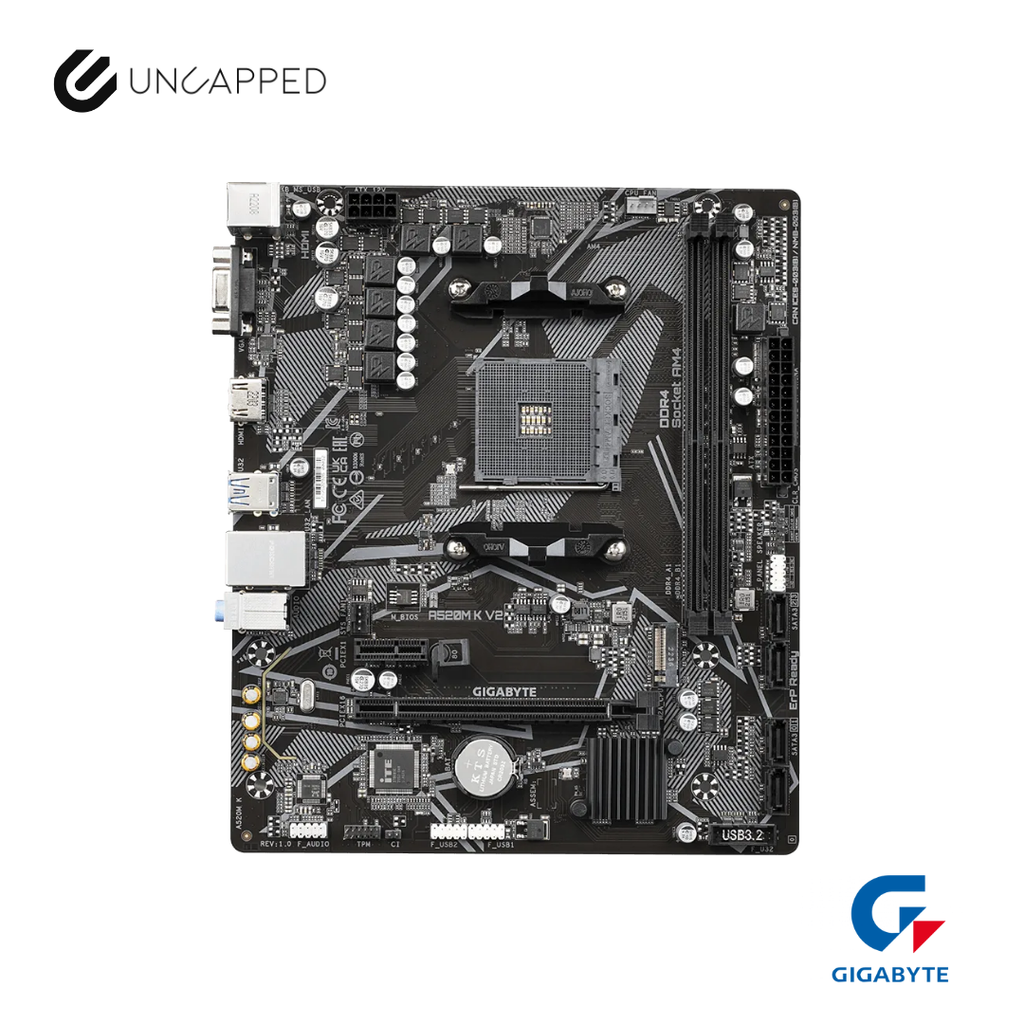

Gigabyte A520M K V2
₱3,400.00
Quick Description
Fast Track Fulfillment
Zero Risk Guarantee
Uncapped Setup™
Do you have a physical store?
Do you have a physical store?
Uncapped PC is a fully online business, but we’re based in the Philippines and committed to fast, secure, and reliable service.
Do you offer warranty?
Yes, we offer warranty coverage depending on the item. Warranty terms are stated on each product listing.
If you have questions about a specific item’s warranty, feel free to reach out before ordering.
How can I track my order?
Once your item has been shipped, we’ll send you a booking link from the courier we used, along with a tracking number and contact info for follow-ups.
You’ll be able to track your order in real-time and know exactly when to expect it.
Save more with bundled shopping
Product Description
A budget-friendly motherboard designed for everyday computing, offering reliable performance and smooth compatibility with Ryzen CPUs. Ideal for entry-level builds or basic productivity setups, it provides great value without unnecessary frills
Brand: Gigabyte
Socket: AM4
RAM: 2
PCI-E: 1
M.2 Slots: 1
Ryzen 5000 desktop ready
| Category | Details |
|---|---|
| CPU | AMD Socket AM4, support for: - AMD Ryzen™ 5000 G-Series Processors - AMD Ryzen™ 5000 Series Processors - AMD Ryzen™ 4000 G-Series Processors - AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Refer to "CPU Support List" for more information.) |
| Chipset | AMD A520 |
| Memory | - 2 x DDR4 DIMM sockets, up to 64 GB (32 GB per DIMM) - Supports DDR4 5100(O.C.) to 2133 MHz memory modules - Dual-channel memory architecture - ECC and non-ECC Un-buffered DIMMs supported - Supports XMP memory modules (Refer to "Memory Support List" for more information.) |
| Onboard Graphics | - Integrated Graphics Processor - 1 x D-Sub (1920x1200@60 Hz) - 1 x HDMI 2.1 (4096x2160@60 Hz, HDCP 2.3, HDR) - Max shared memory: 16 GB |
| Audio | - Realtek® Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel audio (7.1-channel configurable via software) |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 (PCIe 3.0, running at x16) Chipset: - 1 x PCI Express x1 (PCIe 3.0, running at x1) |
| Storage Interface | CPU: - 1 x M.2 (Socket 3, M key, SATA & PCIe 3.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors - RAID 0, RAID 1, RAID 10 support |
| USB | CPU: - 4 x USB 3.2 Gen 1 (back panel) Chipset: - 2 x USB 3.2 Gen 1 (internal) - 6 x USB 2.0/1.1 (2 back panel, 4 internal) |
| Internal I/O | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x M.2 connector - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header - 1 x speaker header - 1 x Clear CMOS jumper - 1 x chassis intrusion header |

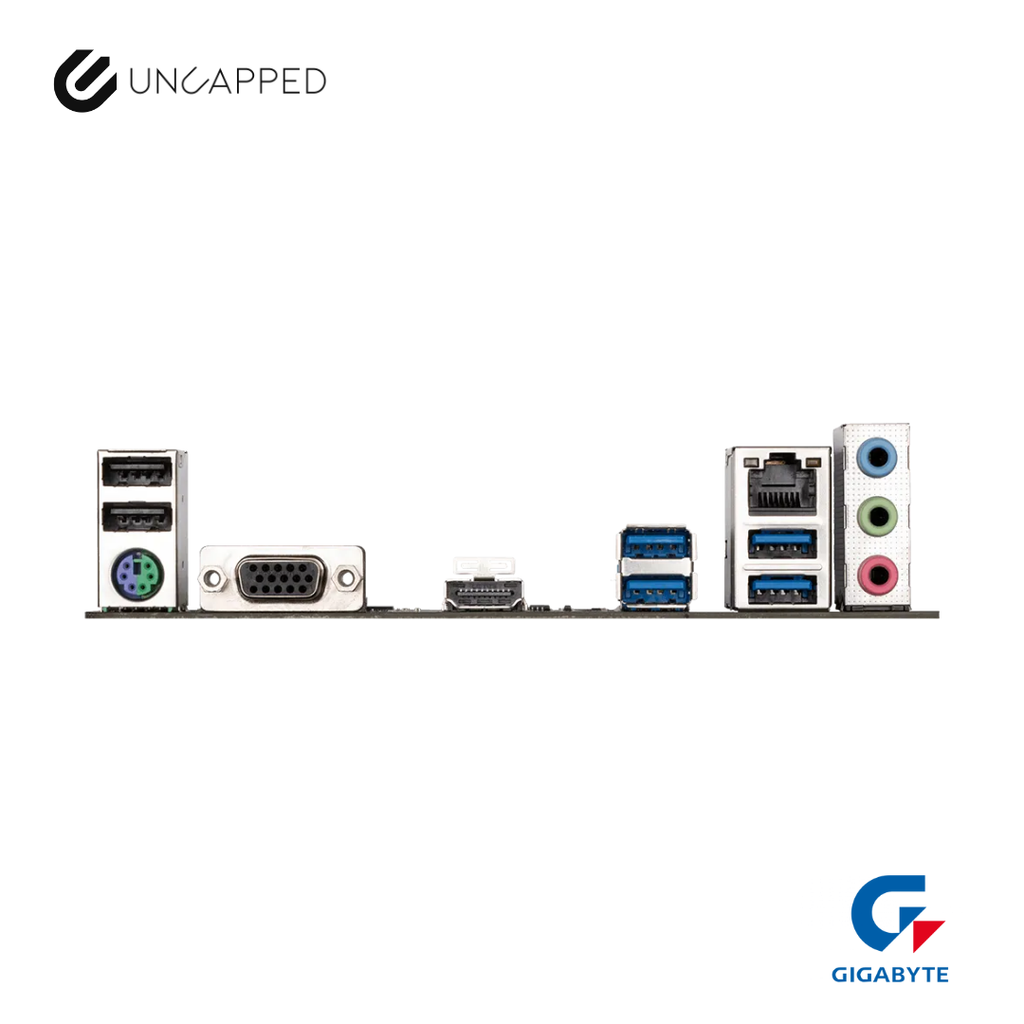

| Back Panel I/O | - 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 1 x HDMI port - 4 x USB 3.2 Gen 1 ports - 2 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage, Temperature, and Fan speed detection - Fan fail warning - Fan speed control (depends on the cooler) |
| BIOS | - 1 x 128 Mbit flash - AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - Support for APP Center (varies by model) - @BIOS, EasyTune, Smart Backup, System Information Viewer - Q-Flash, Xpress Install |
| Bundled Software | - Norton® Internet Security (OEM) - LAN bandwidth management software |
| Operating System | - Windows 11 64-bit - Windows 10 64-bit |
| Form Factor | Micro ATX, 23.3 cm x 19.8 cm |
