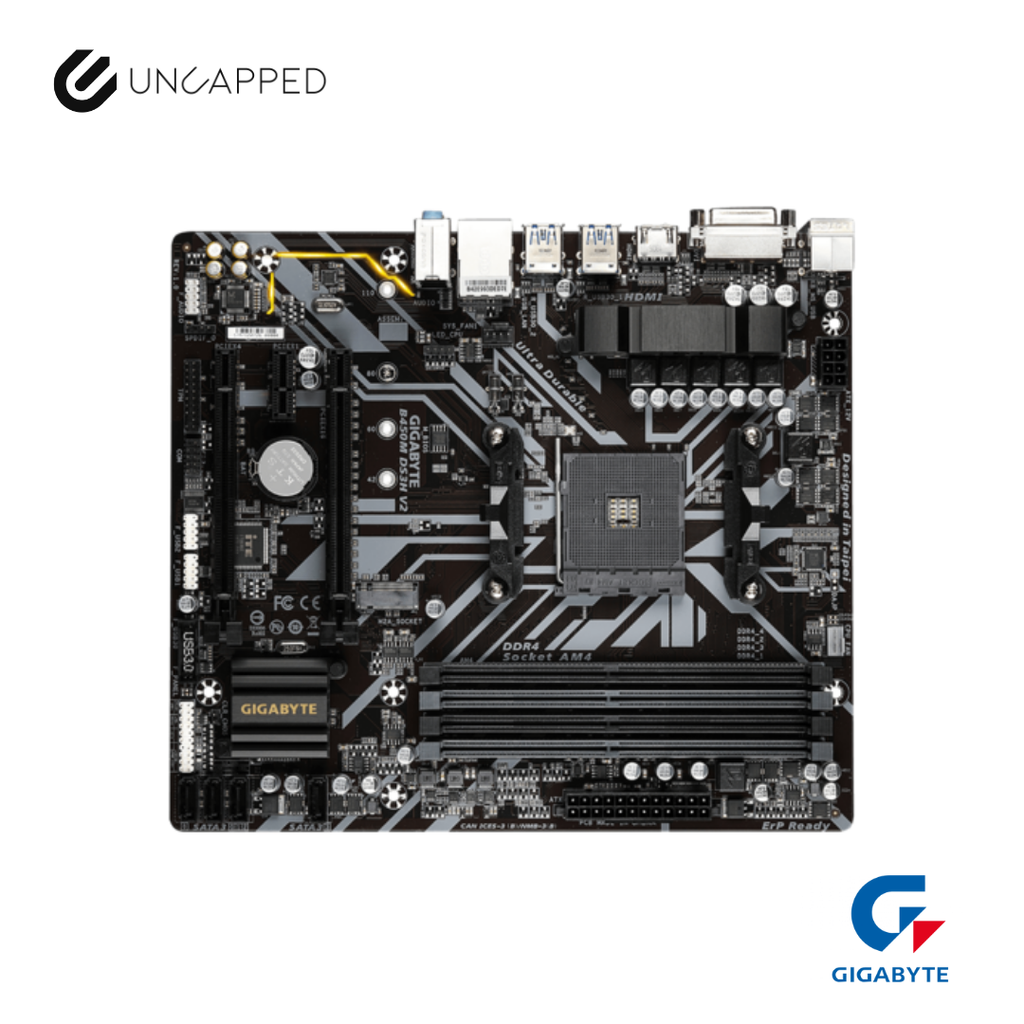

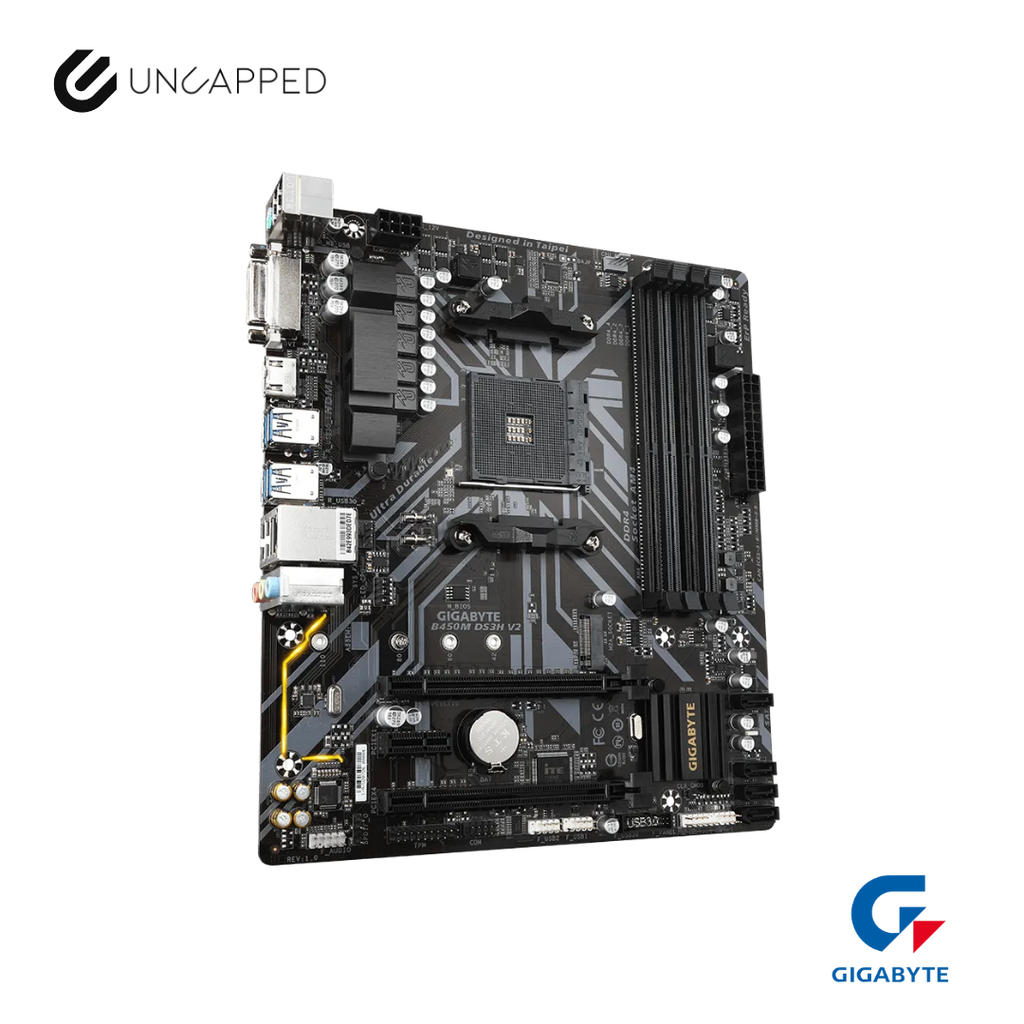

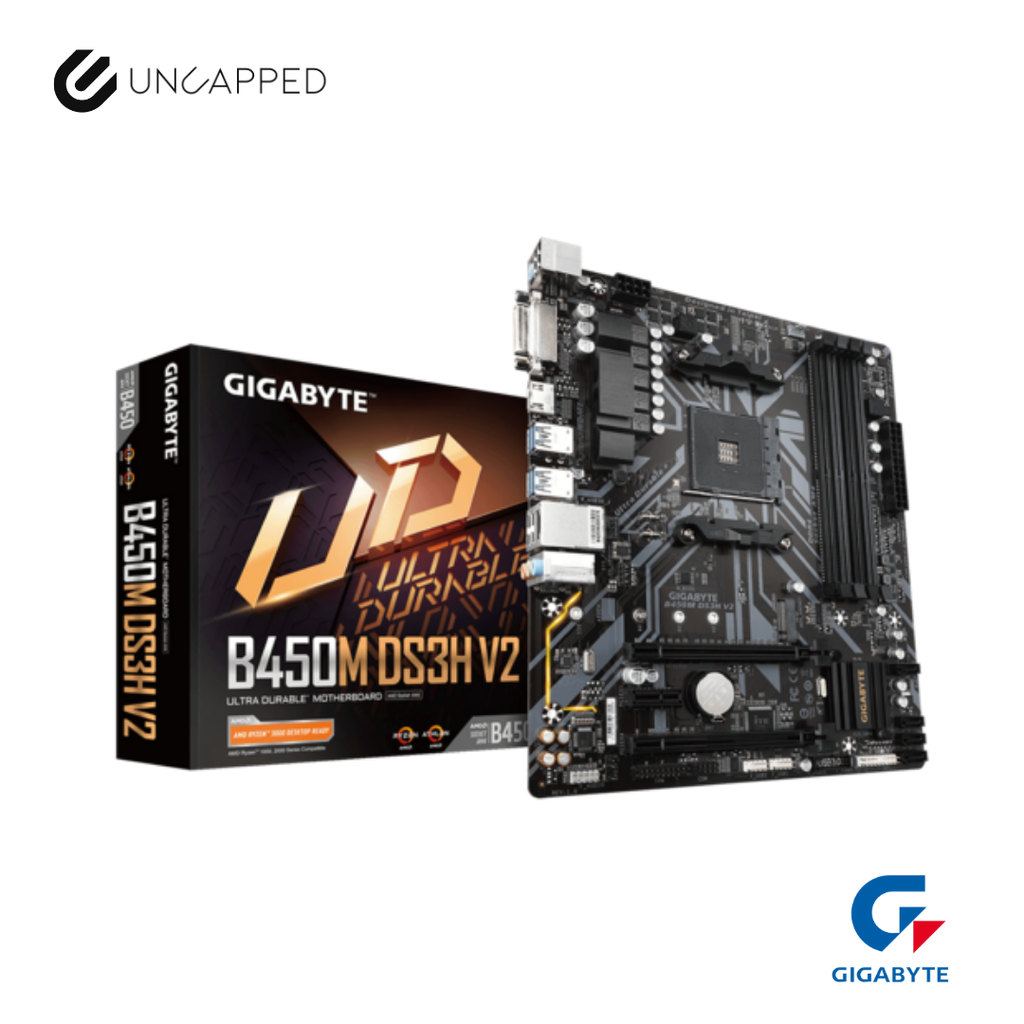

Gigabyte B450M DS3H v2
1/4
  • Gigabyte B450M DS3H v2
  • Gigabyte B450M DS3H v2
  • Gigabyte B450M DS3H v2
  • Gigabyte B450M DS3H v2
Gigabyte B450M DS3H v2

Gigabyte B450M DS3H v2

₱4,200.00

Quick Description

Brand: Gigabyte
Socket: AM4
RAM: 4
PCI-E: 2
M.2 Slots: 1
Ryzen 5000 desktop ready

Fast Track Fulfillment

Zero Risk Guarantee

Smart Match Compatibility
📍 Do you have a physical store?

Uncapped PC is a fully online business, but we’re based in the Philippines and committed to fast, secure, and reliable service.
🛠️ Do you offer warranty?

Yes, we offer warranty coverage depending on the item. Warranty terms are stated on each product listing.

If you have questions about a specific item’s warranty, feel free to reach out before ordering.
🚚 How can I track my order?

Once your item has been shipped, we’ll send you a booking link from the courier we used, along with a tracking number and contact info for follow-ups.

You’ll be able to track your order in real-time and know exactly when to expect it.

Perfect for gamers and multitaskers, this motherboard balances affordability and power with support for high-speed RAM and PCIe devices. It’s an excellent choice for those looking to upgrade without overspending

Brand: Gigabyte
Socket: AM4
RAM: 4
PCI-E: 2
M.2 Slots: 1
Ryzen 5000 desktop ready

Category Details
CPU AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series / 3rd Gen Ryzen™ / 2nd Gen Ryzen™ / 1st Gen Ryzen™ / 2nd Gen Ryzen™ with Radeon™ Vega Graphics / 1st Gen Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics Processors
(Refer to "CPU Support List" for more information.)
Chipset AMD B450
Memory
  • 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM)
  • Supports DDR4 3600(O.C.) to 2133 MHz
  • Dual-channel memory architecture
  • ECC and non-ECC Unbuffered DIMMs supported
  • Supports XMP memory modules (Refer to "Memory Support List" for more information.)
Onboard Graphics
  • Integrated Graphics Processor
  • 1 x DVI-D port (1920x1200@60 Hz)
  • 1 x HDMI port (4096x2160@60 Hz) (Supports HDMI 2.0, HDCP 2.2)
  • Max shared memory: 16 GB
Audio
  • Realtek® Audio codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel audio
  • Supports S/PDIF Out
  • 7.1-channel configurable via software
LAN Realtek® GbE LAN chip (10/100/1000 Mbps)
Expansion Slots
  • 1 x PCI Express x16, running at x16 (PCIe 3.0)
  • 1 x PCI Express x16, running at x4 (PCIe 2.0)
  • 1 x PCI Express x1 (PCIe 2.0)
  • Support may vary by CPU.
Multi-GPU Support Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  • 1 x M.2 connector (Socket 3, M key, PCIe x4/x2 and SATA support)*
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support
  • Support may vary by CPU.
USB
  • Chipset: 2 x USB 3.1 Gen 1 (internal), 8 x USB 2.0/1.1 (4 rear, 4 internal)
  • CPU: 4 x USB 3.1 Gen 1 (rear panel)
Internal I/O
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 1 x USB 3.1 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header
  • 1 x serial port header
  • 1 x Clear CMOS jumper

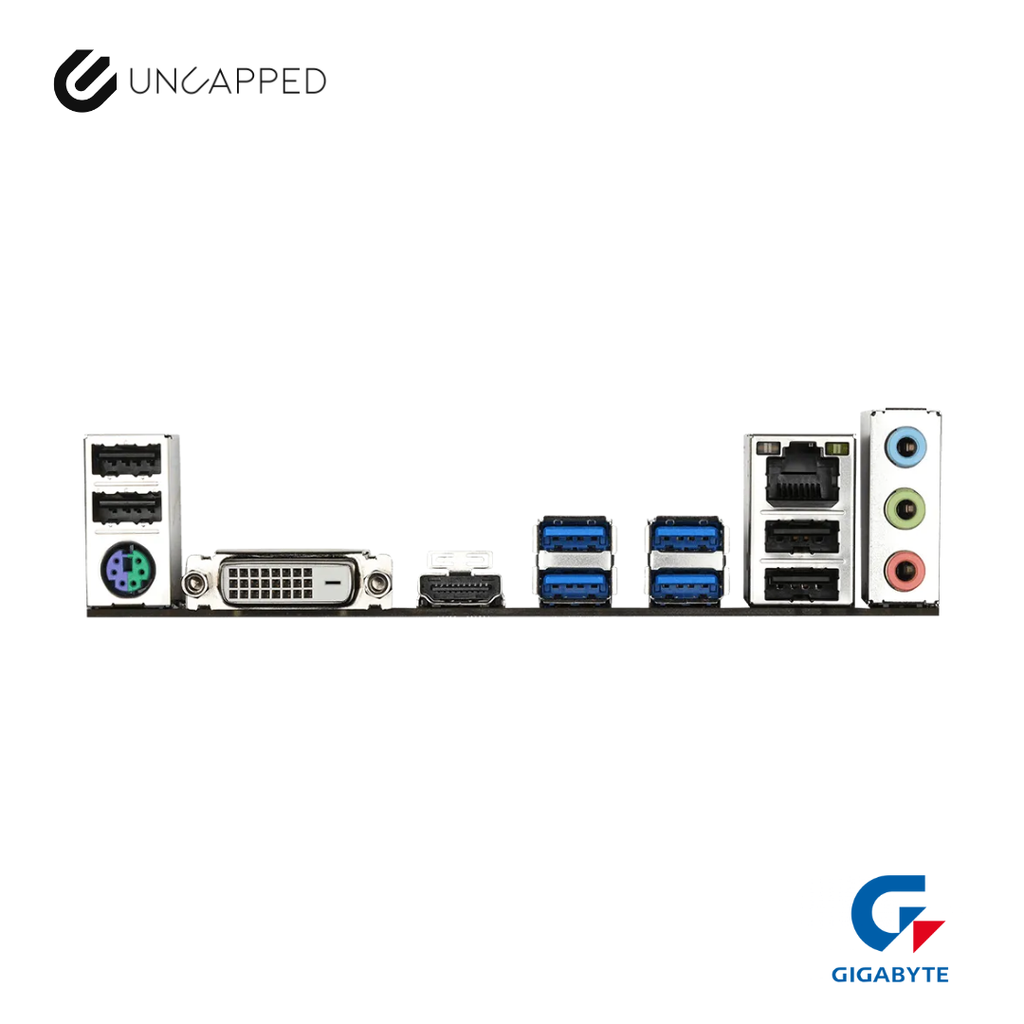

Back Panel I/O
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.1 Gen 1
  • 4 x USB 2.0/1.1
  • 1 x RJ-45
  • 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage, Temperature, and Fan speed detection
  • Overheating and Fan fail warning
  • Fan speed control (depends on the cooler)
BIOS
  • 1 x 128 Mbit flash
  • AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
  • @BIOS, EasyTune, Fast Boot, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer
  • Q-Flash, Xpress Install
Bundled Software
  • Norton® Internet Security (OEM)
  • LAN bandwidth management software
Operating System
  • Windows 11 64-bit
  • Windows 10 64-bit
Form Factor Micro ATX, 24.4 cm x 21.5 cm
