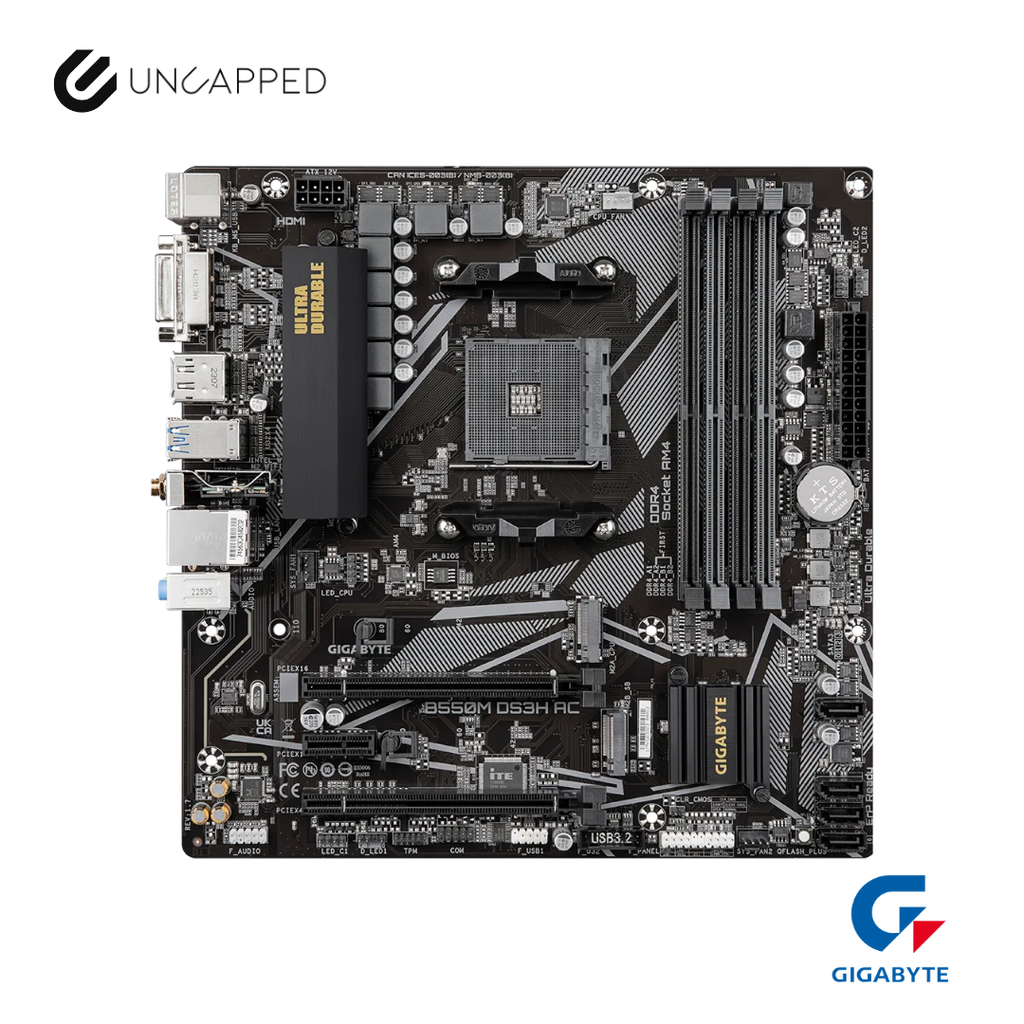

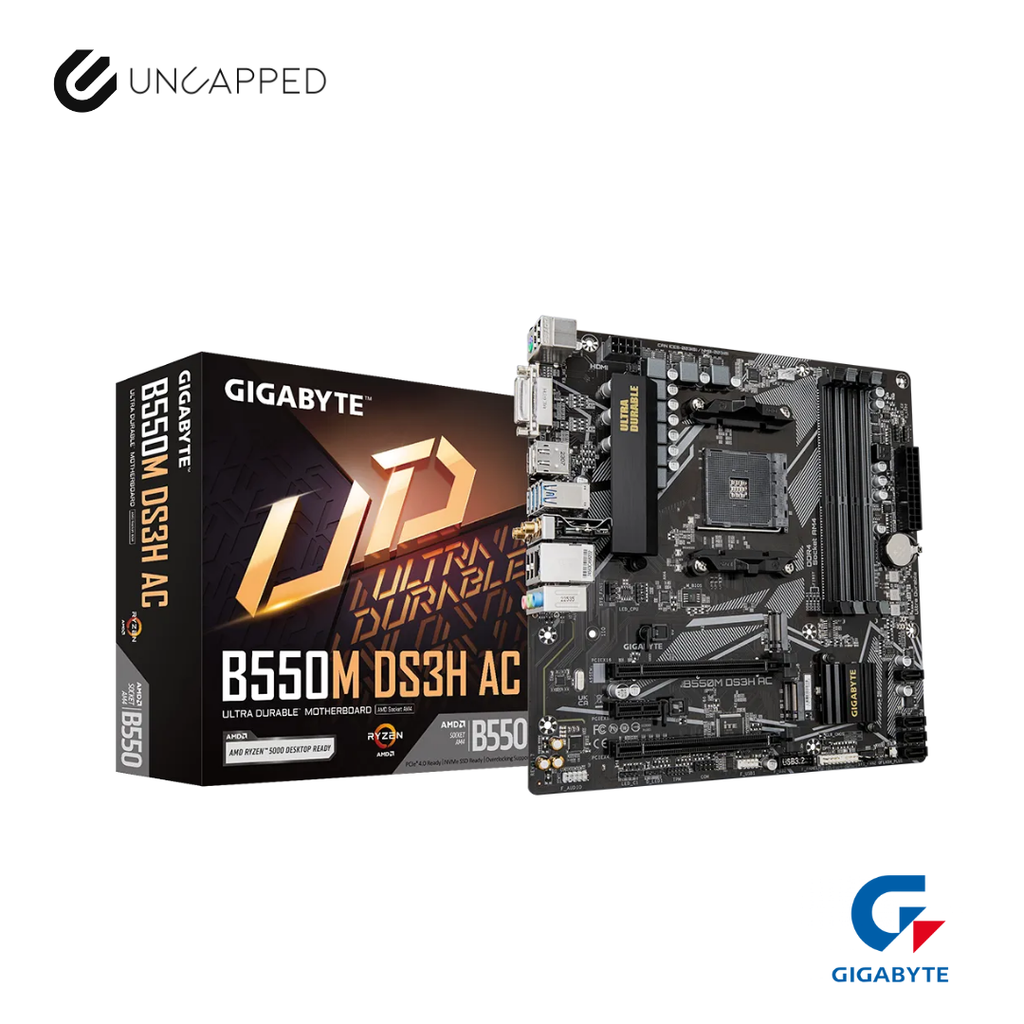

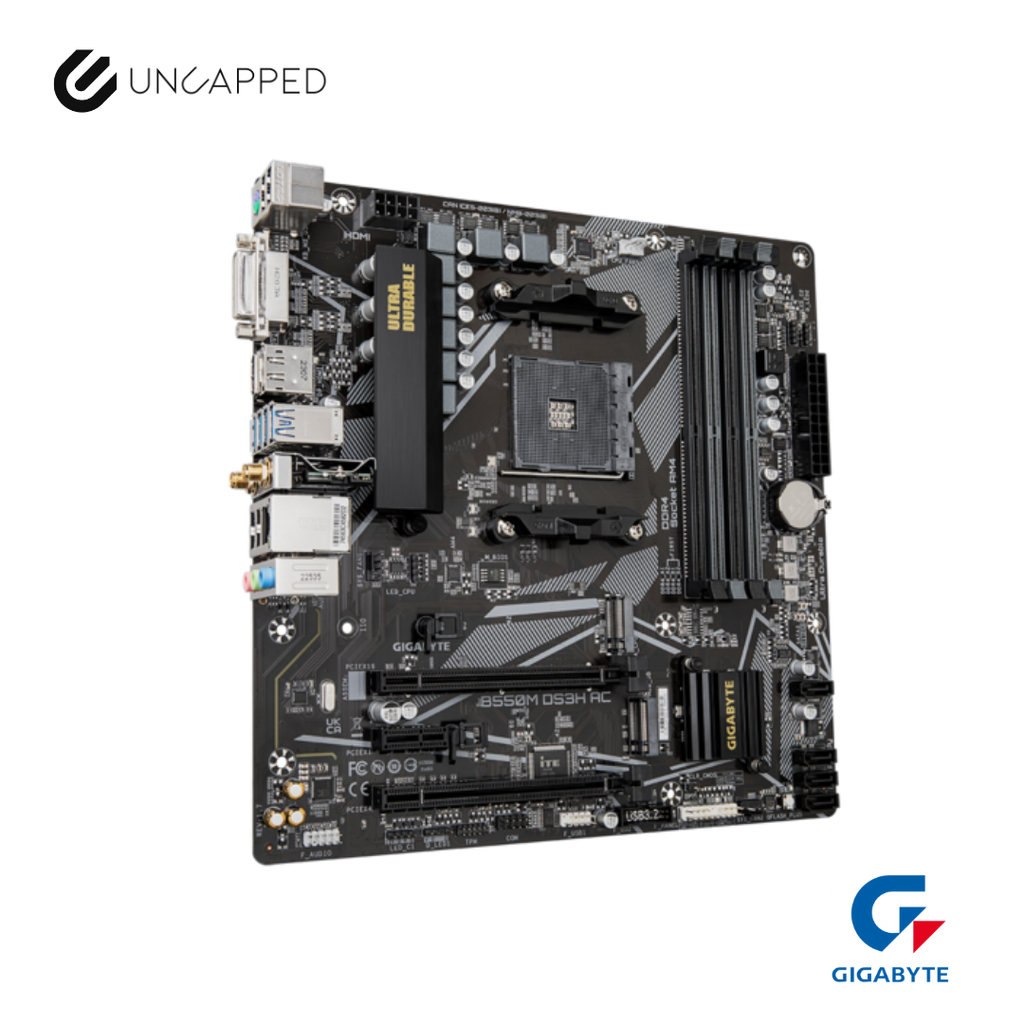

Gigabyte B550M DS3H AC
₱5,700.00
Quick Description
Fast Track Fulfillment
Zero Risk Guarantee
Uncapped Setup™
Do you have a physical store?
Do you have a physical store?
Uncapped PC is a fully online business, but we’re based in the Philippines and committed to fast, secure, and reliable service.
Do you offer warranty?
Yes, we offer warranty coverage depending on the item. Warranty terms are stated on each product listing.
If you have questions about a specific item’s warranty, feel free to reach out before ordering.
How can I track my order?
Once your item has been shipped, we’ll send you a booking link from the courier we used, along with a tracking number and contact info for follow-ups.
You’ll be able to track your order in real-time and know exactly when to expect it.
Save more with bundled shopping
Product Description
Built for the future, this motherboard features WiFi and PCIe 4.0, making it perfect for gamers and creators who want high-speed connectivity and next-gen performance. Its robust design ensures compatibility with the latest Ryzen CPUs.
Brand: Gigabyte
Socket: AM4
RAM: 4
PCI-E: 2
M.2 Slots: 2
WIFI: Included
Ryzen 5000 desktop ready
| Category | Details |
|---|---|
| CPU | AMD Socket AM4, support for: - AMD Ryzen™ 5000 Series - Ryzen™ 5000 G-Series - Ryzen™ 4000 G-Series - Ryzen™ 3000 Series - Ryzen™ 3000 G-Series Processors (Refer to "CPU Support List" for more information.) |
| Chipset | AMD B550 |
| Memory | - 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM) - Supports DDR4 4733(O.C.) to 2133 MHz - Dual channel memory architecture - ECC and non-ECC Unbuffered DIMMs supported - Supports XMP memory modules (Refer to "Memory Support List" for more information.) |
| Onboard Graphics | - Integrated Graphics Processor - 1 x DVI-D port (1920x1200@60 Hz) - 1 x HDMI port (4096x2160@60 Hz) - Max shared memory: 16 GB |
| Audio | - Realtek® Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel *(7.1-channel configurable via software)* |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbps) |
| Wireless Communication | - Intel® Wi-Fi AC 3168 - WIFI 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 *Actual data rate may vary depending on environment and equipment.* |
| Expansion Slots | - 1 x PCI Express x16 (PCIe 4.0/3.0 mode, depending on CPU) - 1 x PCI Express x16 (PCIe 3.0 x4 mode) - 1 x PCI Express x1 (PCIe 3.0 x1 mode) |
| Storage Interface | - 1 x M.2 connector (PCIe 4.0/3.0 and SATA support) - 1 x M.2 connector (PCIe 3.0 and SATA support) - 4 x SATA 6Gb/s connectors *Supports RAID 0, RAID 1, and RAID 10.* |
| USB | **CPU:** - 4 x USB 3.2 Gen 1 ports (rear panel) **Chipset:** - 2 x USB 3.2 Gen 1 ports (internal) - 6 x USB 2.0/1.1 ports (4 rear, 2 internal) |
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 2 x system fan headers - 2 x addressable LED strip headers - 2 x RGB LED strip headers - 2 x M.2 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 1 x USB 2.0/1.1 header - 1 x TPM header - 1 x serial port header - 1 x Clear CMOS jumper - 1 x Q-Flash Plus button |

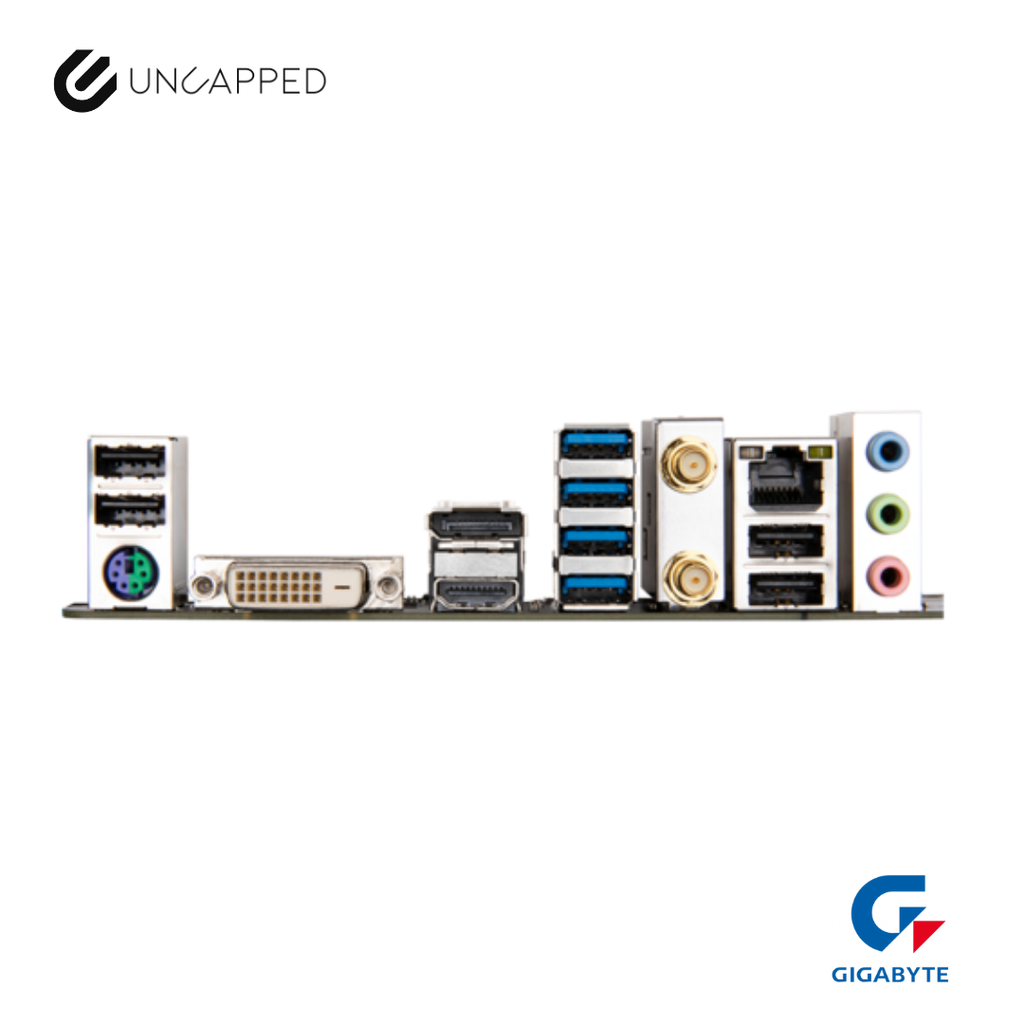

| Back Panel I/O | - 1 x PS/2 keyboard/mouse port - 1 x DVI-D port - 2 x SMA antenna connectors - 1 x HDMI port - 4 x USB 3.2 Gen 1 ports - 4 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control |
| BIOS | - 1 x 256 Mbit flash - AMI UEFI BIOS |
| Unique Features | - Support for APP Center - @BIOS - EasyTune - ON/OFF Charge - RGB Fusion - Smart Backup - System Information Viewer - Q-Flash Plus |
| Bundled Software | - Norton® Internet Security (OEM) - LAN bandwidth management software |
| Operating System | - Windows 11 64-bit - Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4 cm x 24.4 cm |
