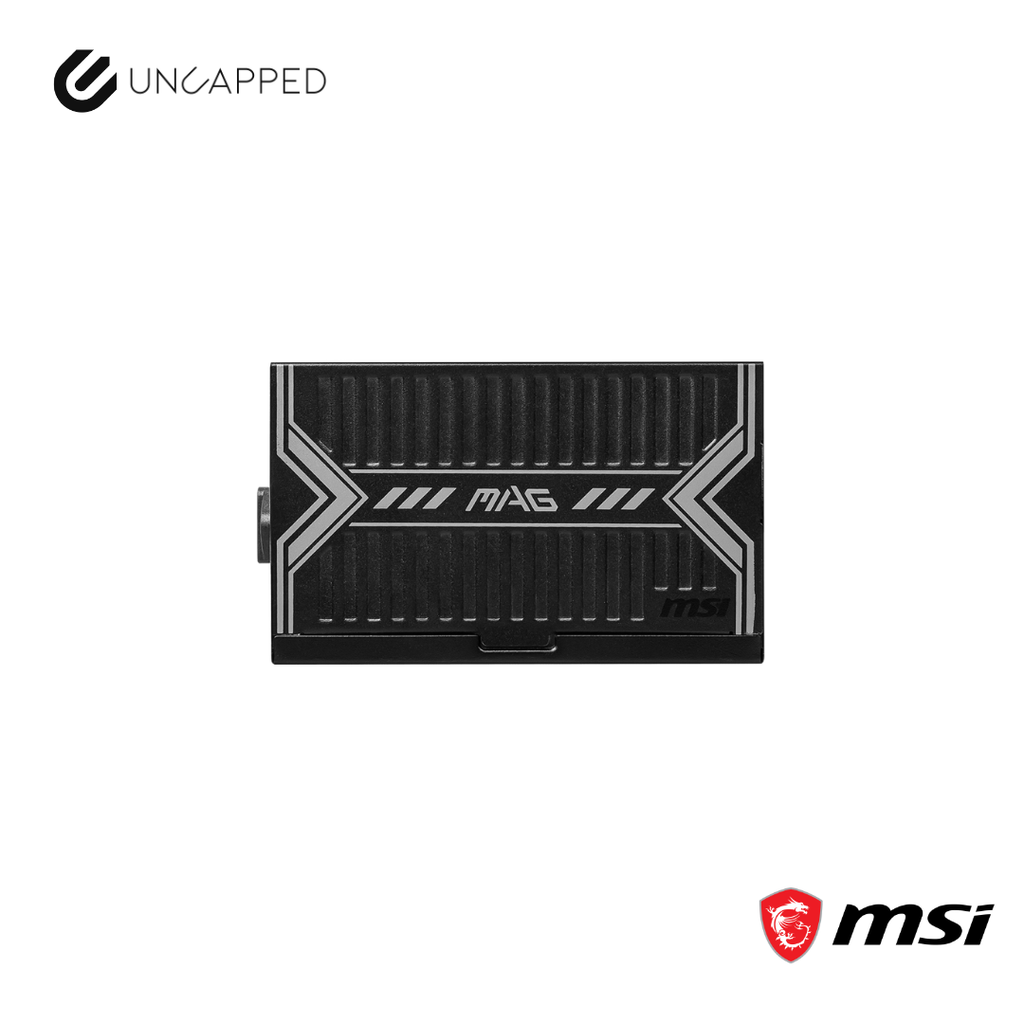

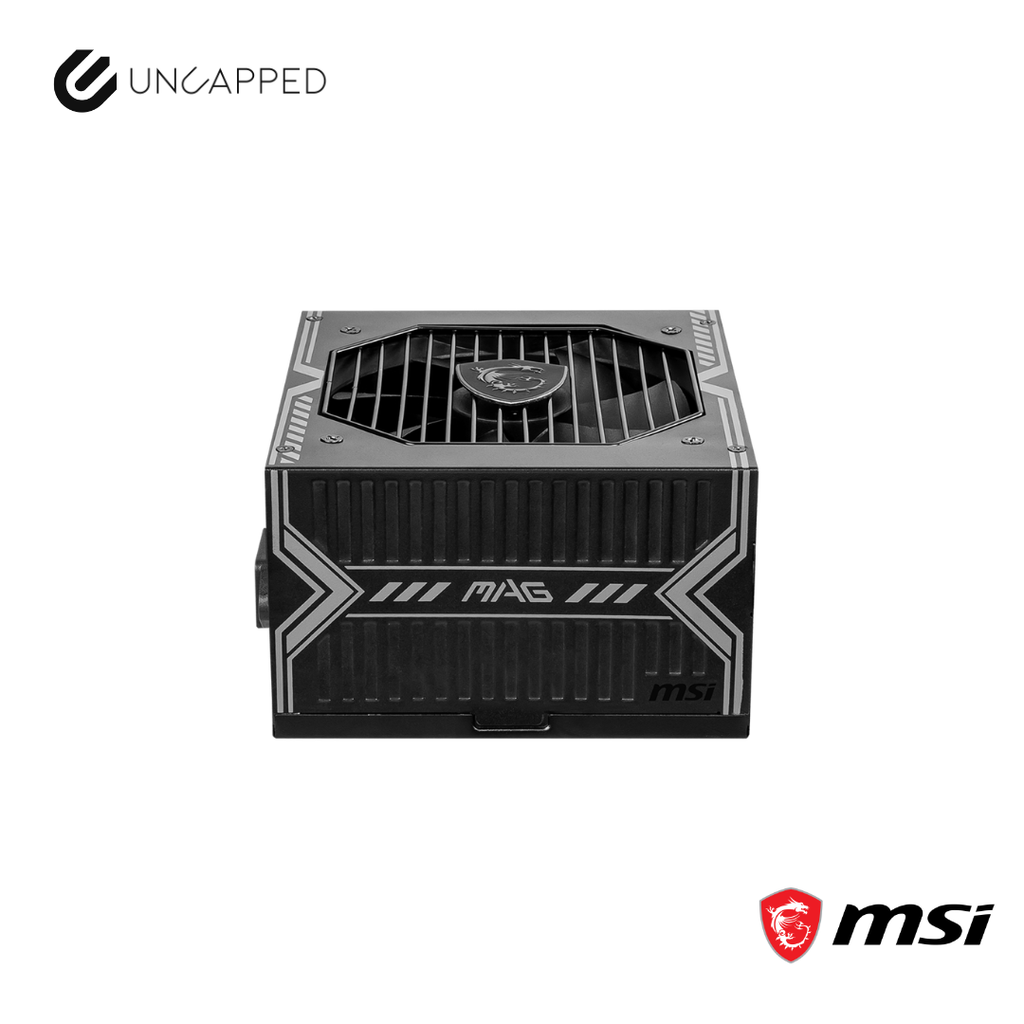

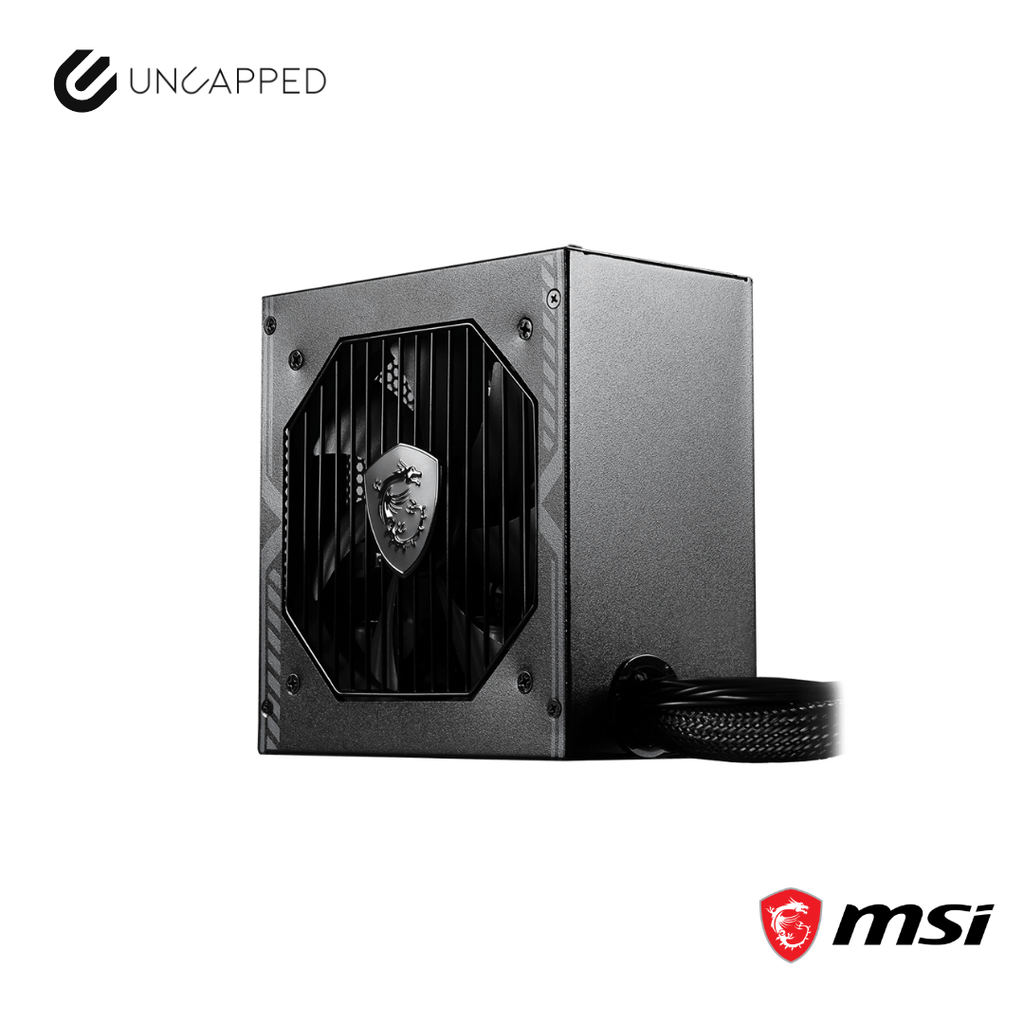

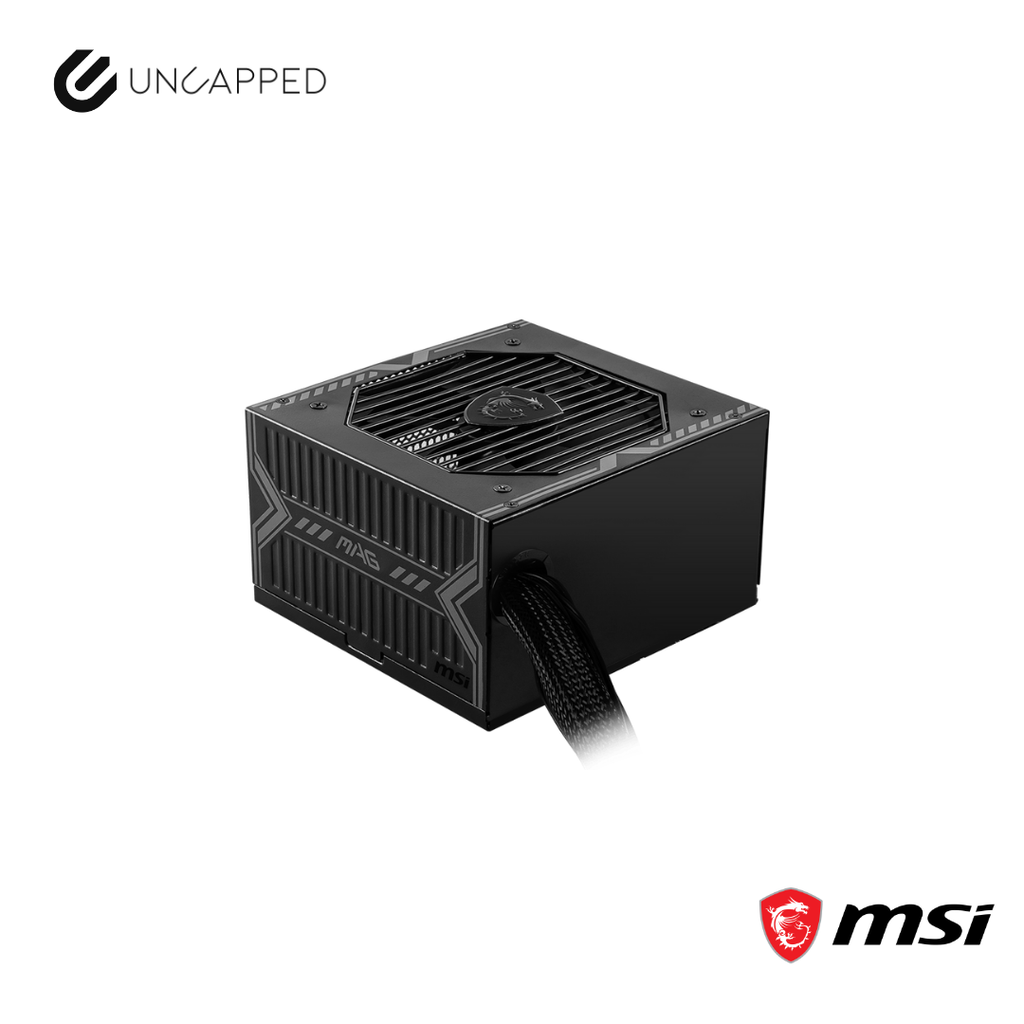

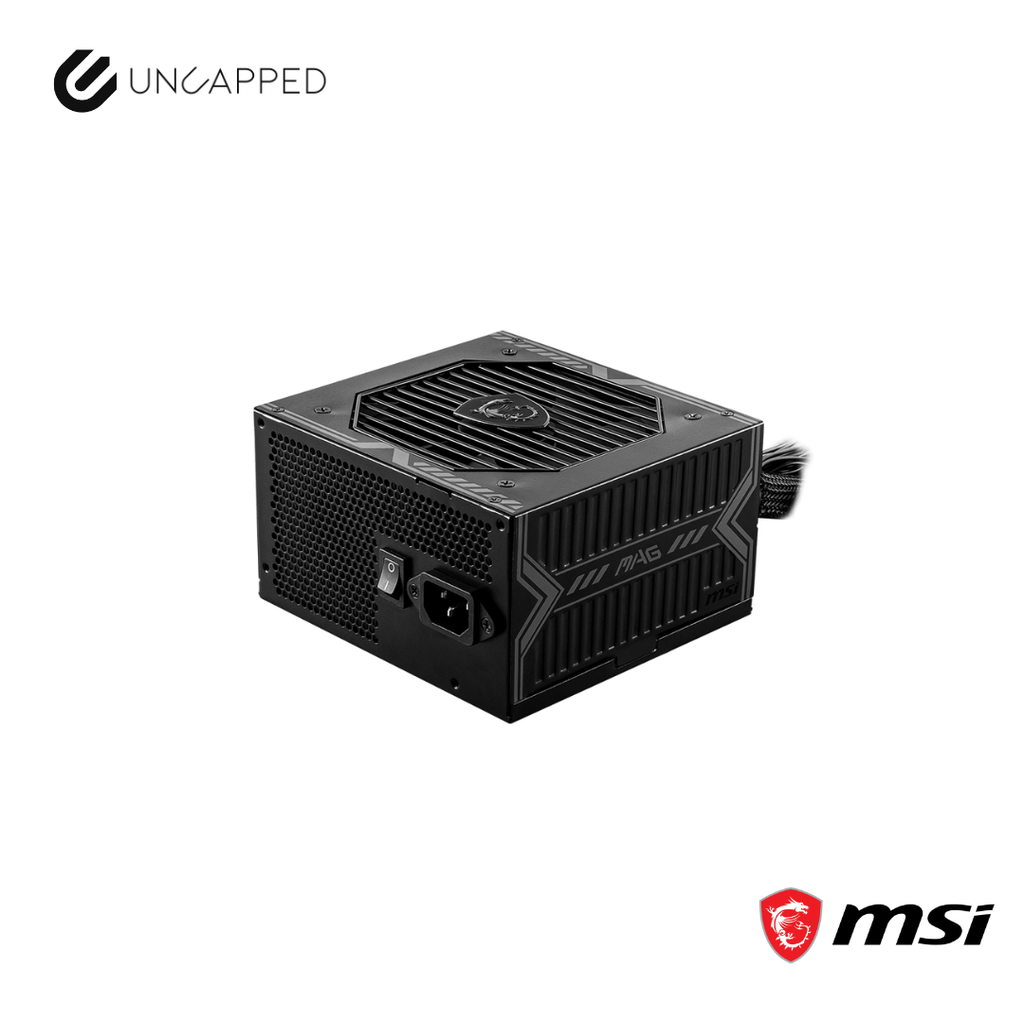

The MSI MAG A750BN PCIE5 is a 750W power supply unit (PSU) designed for gamers and PC enthusiasts seeking reliable performance and compatibility with the latest hardware. With an 80 PLUS Bronze certification, it ensures up to 85% energy efficiency, reducing excess heat and lowering energy costs. This PSU is particularly suitable for those upgrading to PCIe 5.0 graphics cards, such as the NVIDIA GeForce RTX 4070 series, thanks to its native 16-pin PCIe 5.0 connector capable of delivering up to 300W of power.
mportant Specs:
- Power Output: 750W
- Efficiency Rating: 80 PLUS Bronze (up to 85%)
- Connector Support: 1 x 16-pin PCIe 5.0 (300W), 2 x 6+2 pin PCIe
- Dimensions: 140mm (D) x 150mm (W) x 86mm (H)
- Cooling: 120mm low-noise fan
| Category | Details |
|---|---|
| Power Wattage | 750W |
| Efficiency Rating | 80 PLUS Bronze (up to 85%) |
| Modular | No |
| Fan Size | 120 mm |
| Fan Bearing | Sleeve Bearing |
| Dimensions (DxWxH) | 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Input Frequency Range | 50~60Hz |
| Protection | OCP, OVP, OPP, OTP, SCP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (300W) |
| PCI-E (6+2 pin) | 2 |
| SATA (15 pin) | 5 |
| Peripheral (4 pin) | 2 |
| FDD (4 pin) | 1 |
