Brand: MSI
Socket: AM5
RAM: 4
PCI-E: 1
M.2 Slots: 2
WIFI: Included
Ryzen 9000 desktop ready
Category | Details |
---|---|
Form Factor | Micro ATX |
CPU Socket | AM5 |
Chipset | AMD B650 |
Supported Processors | AMD Ryzen™ 7000, 8000, and 9000 Series Desktop Processors |
Memory Slots | 4 x DDR5 DIMM slots |
Memory Speed | Up to 7200+ MHz (OC) |
Maximum Memory Capacity | 256GB |
Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
Storage | 2 x M.2 slots (1 x PCIe Gen4 x4, 1 x PCIe Gen3 x2), 4 x SATA III ports |

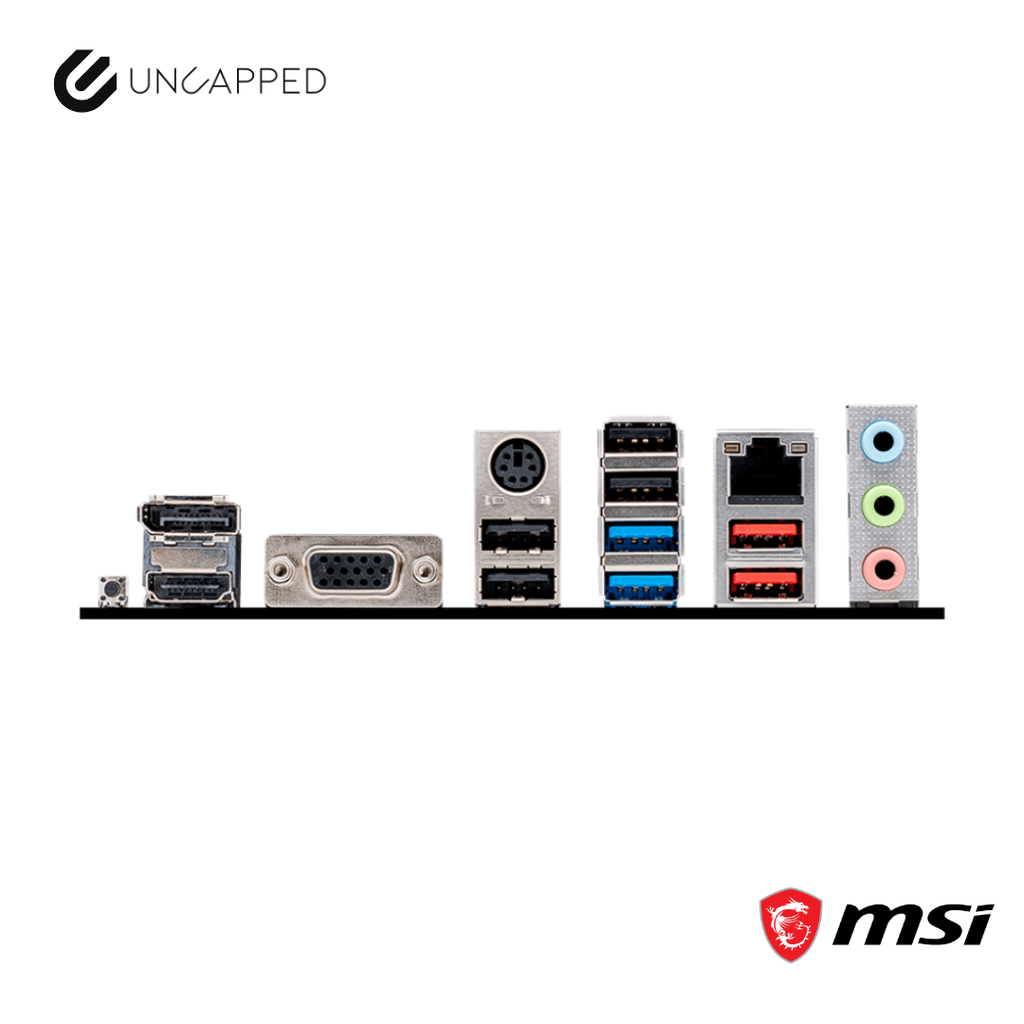

Graphics Output | 1 x HDMI, 1 x DisplayPort |
Audio | 7.1-Channel High Definition Audio (Realtek ALC897 Codec) |
LAN | 2.5 Gigabit LAN |
USB Ports | Rear: 2 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0; Front: Supports additional USB ports via internal headers |
Power Phase | 14+2+1 VRM power design |
Special Features | DDR5 Memory Support, PCIe 4.0, 2.5G LAN, Enhanced Power Design, Premium Thermal Solution |
